MC33275DT-3.3RKG (ON SEMICONDUCTOR)
Фиксированный стабилизатор с малым падением напряжения, 13В (Vin), 260мВ, 3.3В/300мА выход, TO-252-3

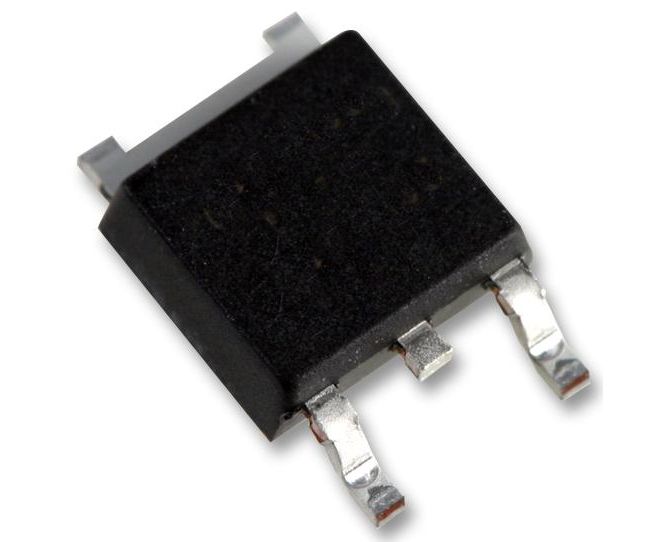

The MC33275DT-3.3RKG is a micropower fixed low dropout (LDO) linear voltage regulator in 4 pin TO-252 package. This positive regulator has very low quiescent current and it is capable of supplying output currents up to 300mA. Internal current and thermal limiting protections are provided by the presence of a short circuit at output and an internal thermal shutdown circuit. Due to low input to output voltage differential and bias current specifications, this device is ideally suited for battery powered instruments and industrial equipments where an extension of useful battery life is desirable.
- Fixed output voltage of 3.3V
- Low dropout voltage of 260mV at IO = 300mA
- Maximum input voltage of 13V
- Quiescent current of 0.125mA
- PSRR of 75dB and noise of 46µVrms at CL = 200µF
- Extremely tight line and load regulation
- Stable with output capacitance of 0.33µF
- Operating ambient temperature range from -40°C to 125°C
Области применения
Управление Питанием, Переносные Устройства, Потребительская Электроника, Промышленное
Предупреждения
Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Количество Выводов:
3вывод(-ов)
Линейка Продукции:
3.3V 300mA LDO Voltage Regulators
Максимальная Рабочая Температура:
125°C
Максимальное Входное Напряжение:
13В
Максимальное Регулируемое Выходное Напряжение:
-
Минимальная Рабочая Температура:
-40°C
Минимальное Входное Напряжение:
-
Минимальное Регулируемое Выходное Напряжение:
-
Падение Напряжения Vdo:
260мВ
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Стабилизатора (LDO):
TO-252
Тип Выхода:
Фиксированный
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
Выходные параметры
Выходной Ток:
300мА
