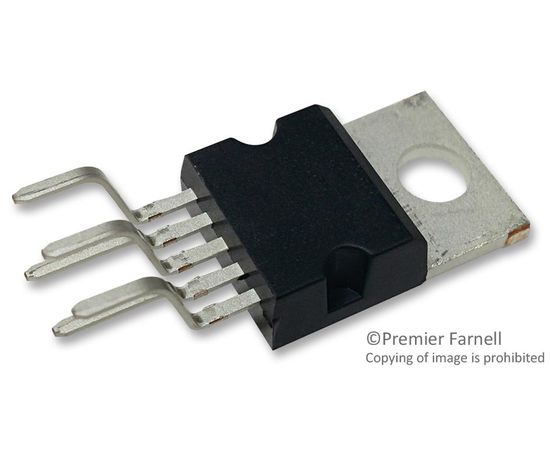

MC33166TG (ON SEMICONDUCTOR)
Повышающий импульсный DC-DC стабилизатор, инвертирующий, 7.5В-40В на вход, 5.05В/3А на выходе
The MC33166TG is a high-performance fixed frequency power Switching Regulator contains the primary functions required for DC-to-DC converters. This series was specifically designed to be incorporated in step-down and voltage-inverting configurations with a minimum number of external components and can also be used in step-up applications. This device consists of an internal temperature compensated reference, fixed frequency oscillator with on-chip timing components, latching pulse width modulator for single pulse metering, high gain error amplifier and a high current output switch. Protective features consist of cycle-by-cycle current limiting, undervoltage lockout and thermal shutdown. Also included is a low power standby mode that reduces power supply current to 36µA.
- Fixed frequency oscillator (72kHz) with on-chip timing
- Provides 5.05V output without external resistor divider
- Precision 2% reference
- Cycle-by-cycle current limiting
- Undervoltage lockout with hysteresis
- Internal thermal shutdown
- Output switch current in excess of 3A
- 0 to 95% Output duty cycle
Области применения
Управление Питанием
Количество Выводов:
5вывод(-ов)
Количество Выходов:
1выход(-ов)
Корпус ИС DC / DC Преобразователя:
TO-220
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальное Входное Напряжение:
40В
Максимальное Выходное Напряжение:
40В
Минимальное Входное Напряжение:
7.5В
Минимальное Выходное Напряжение:
1.5В
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Топология (Общая Схема Соединений):
Понижающий, Повышающий, Инвертирующий
Частота Коммутации:
79кГц
SVHC (Особо Опасные Вещества):
Lead (27-Jun-2018)
RoHS статус:
Да
Выходные параметры
Выходной Ток:
3А
