MAX639CPA+ (MAXIM INTEGRATED PRODUCTS)

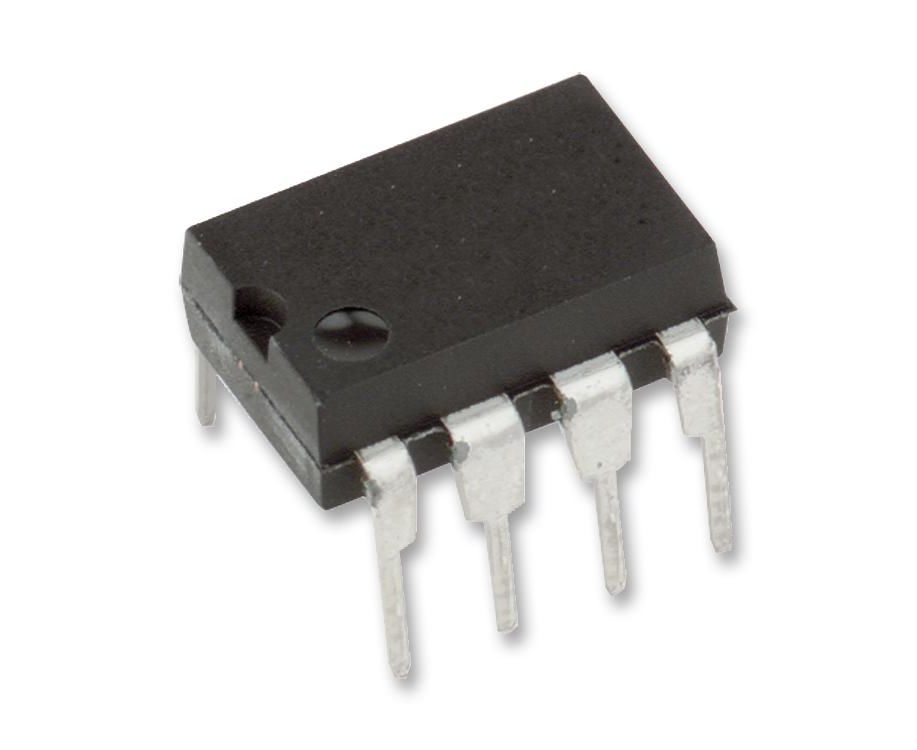

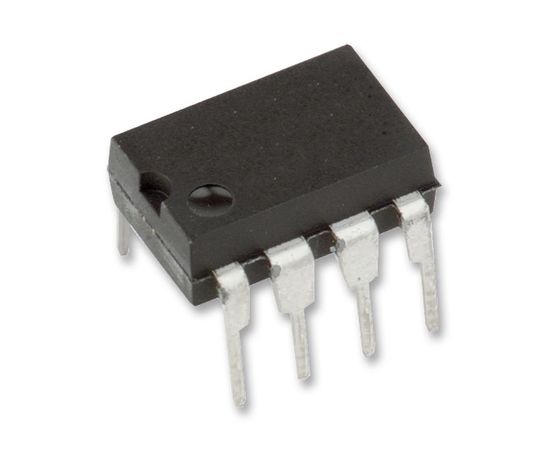

The MAX639CPA+ is a high efficiency, low IQ, step down DC to DC converter in 8 pin DIP package. This step down switching regulator provides high efficiency over a wide range of load currents and delivers up to 225mA output current. A current limiting pulse frequency modulated (PFM) control scheme gives the devices the benefits of pulse width modulated (PWM) converters (high efficiency at heavy loads) while using only 10µA of supply current (2mA to 10mA for PWM converters). This results in high efficiency over wide range of loads. The MAX639 provides lower preset output voltage of 5V and the output can be user adjusted to any voltage from 1.3V to input voltage. It has an internal 1A power MOSFET switch which makes the device ideal for minimum component, low and medium power applications. It is typical used for 9V battery to 5V, 3.3V or 3V conversion, high efficiency linear regulator replacement and 5V to 3.3V converters.
