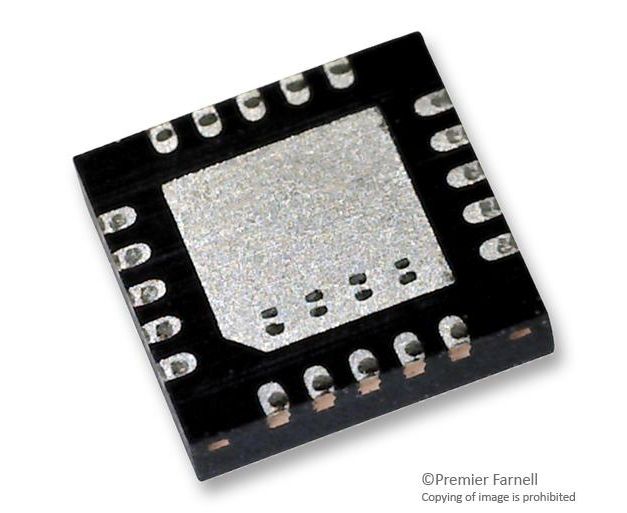

MAX4896ETP+ (MAXIM INTEGRATED PRODUCTS)
Драйвер реле/нагрузки, 8 выходов, 2.7В до 5.5В, 200мА выход, TQFN-20
The MAX4896ETP+ is a space saving, 8-channel relay/load driver in 20 pin TQFN package. It is an 8-channel relay and load driver is designed for medium voltage applications up to 50V. The MAX4896 8-channel relay driver offers built-in inductive kickback protection, drive for latching/nonlatching or dual-coil relays and open-load and short circuit fault detection. The MAX4896 also protects against overcurrent conditions. Each independent open-drain output features a 3ohm (typ) on-resistance and has to sink 200mA of load current (VS >= 4.5V). A built-in overvoltage protection clamp handles kickback voltage transients which are common when driving inductive loads. Thermal shutdown circuitry shuts off all outputs (OUT_) when the junction temperature exceeds +160°C. The MAX4896 employs a reset input that allows the user to turn off all outputs simultaneously with a single control line. The MAX4896 includes a 10MHz SPI-/QSPI-/MICROWIRE compatible serial interface.
- Supply voltage range is 2.7V to 5.5V
- Operating temperature range from -40°C to 85°C
- Compatible with TTL/CMOS logic voltage levels
- Serial digital output for daisy chaining and diagnostics
- FLAG output for microprocessor interrupt
- Open load and short circuit detection protection
- Thermal shutdown
- Low quiescent supply current is 100µA (max)
Области применения
Промышленное, Потребительская Электроника
Количество Выводов:
20вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальное Напряжение Питания:
5.5В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
2.7В
Соответствует Фталатам RoHS:
Будет Указано Позже
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Привода:
TQFN
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
Выходные параметры
Выходной Ток:
200мА
