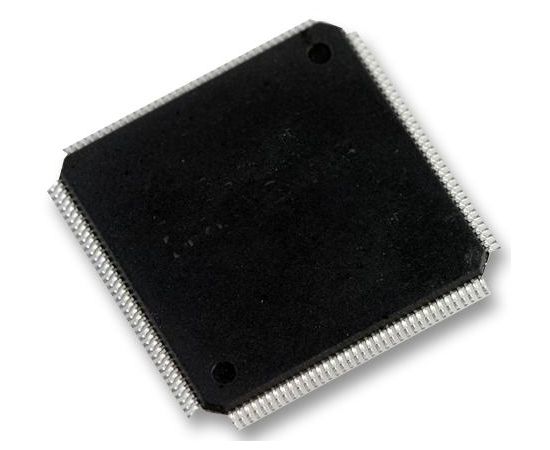

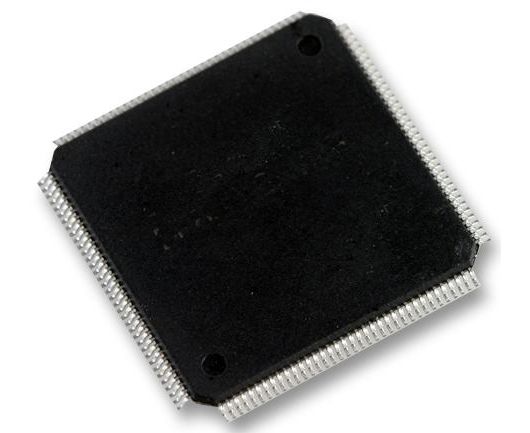

S912XEP100BMAG (NXP)
MCU, 16BIT, S12, 50MHZ, LQPF-144
The S912XEP100BMAG is a 16-bit Microcontroller based on enhanced HCS12X CPU with CISC architecture operates at a maximum frequency of 50MHz. The device incorporates 1000kB internal flash, 64kB internal RAM, 4kB EEPROM, 12-channel 24-bit A/D converter and 119 general-purpose I/O pins. This device also features peripherals like two inter-integrated circuit (IIC) bus module, one CAN 2.0 A, B software compatible module, eight serial communications interface (SCI) and three serial peripheral interface modules (SPI).
- Upward compatible with MC9S12 instruction set
- Enhanced indexed addressing
- Access to large data segments independent of PPAGE
- Interrupt module (INT)
- Module mapping control (MMC)
- Debug module
- Background debug mode (BDM)
- Memory protection unit (MPU)
- Low power loop control pierce oscillator utilizing a 4MHz to 16MHz crystal
- Internally filtered, frequency modulated phase-locked-loop clock generation (IPLL)
- Clock and reset generation (CRG)
- COP watchdog
- Real time interrupt
- Clock monitor
- Fast wake up from STOP in self clock mode
- Enhanced capture timer (ECT) - 8 x 16-bit channels for input capture or output compare
- Standard timer module (TIM) - 8 x 16-bit channels for input capture or output compare
- Periodic interrupt timer (PIT)
- 8 PWM (pulse-width modulator) channels
- On-chip voltage regulator - two parallel, linear voltage regulators with bandgap reference
Области применения
Авто
Архитектура:
S12X
Количество I/O:
119I/O
Количество Выводов:
144вывод(-ов)
Линейка Продукции:
S12X Family S12XE Series Microcontrollers
Максимальное Напряжение Питания:
5.5В
Минимальное Напряжение Питания:
3.13В
Размер Памяти:
1МБ
Размер Памяти RAM:
64КБ
Семейство Микроконтроллера:
S12X
Серия Микроконтроллера:
S12XE
Скорость ЦПУ:
50МГц
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
AEC-Q100
Стиль Корпуса Микроконтроллера:
LQFP
Тип Встроенного Интерфейса:
CAN, I2C, SCI, SPI
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
