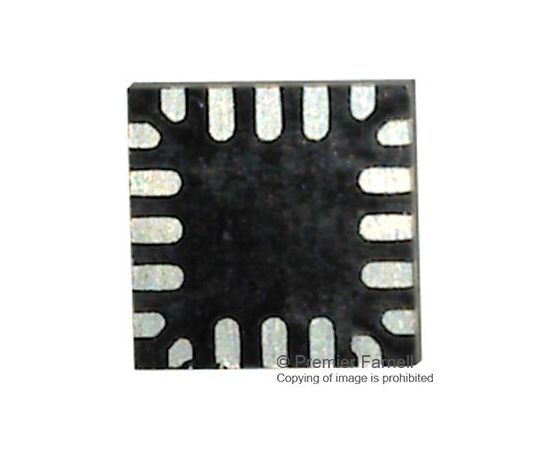

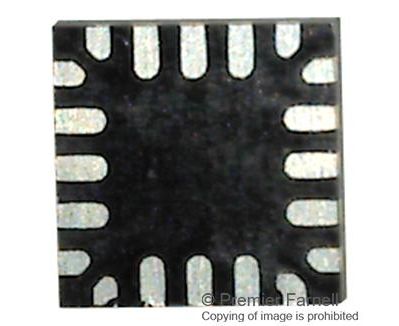

STM8S003F3U6TR (STMICROELECTRONICS)
8 Bit MCU, Value Line, STM8 Family STM8S Series Microcontrollers, 16 МГц, 8 КБ, 1 КБ, 20 вывод(-ов)
The STM8S003F3U6TR is a 8-bit 20-pin value line Microcontroller Unit offers 8kB of flash program memory, plus integrated true data EEPROM and this value line device provides the following benefits of performance and robustness. The device performance and robustness are ensured by true data EEPROM supporting up to 100000 write/erase cycles, advanced core and peripherals made in a state-of-the-art technology at 16MHz clock frequency, robust I/Os, independent watchdogs with separate clock source and a clock security system.
- Communications interfaces - SPI interface up to 8Mbit/s
- UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode
- Highly robust I/O design, immune against current injection
- Interrupt management - Up to 27 external interrupts on 6 vectors
- Nested interrupt controller with 32 interrupts
- Embedded single-wire interface module for fast on-chip programming and non-intrusive debugging
Области применения
Связь и Сеть, Компьютеры и Периферия, Охрана
Предупреждения
Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Количество I/O:
16I/O
Количество Выводов:
20вывод(-ов)
Линейка Продукции:
STM8 Family STM8S Series Microcontrollers
Максимальное Напряжение Питания:
5.5В
Минимальное Напряжение Питания:
2.95В
Размер Памяти:
8КБ
Размер Памяти RAM:
1КБ
Семейство Микроконтроллера:
STM8
Серия Микроконтроллера:
STM8S
Скорость ЦПУ:
16МГц
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Микроконтроллера:
UFQFPN
Тип Встроенного Интерфейса:
I2C, SPI, UART
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
No SVHC (17-Dec-2015)
RoHS статус:
Да
