STM8S003F3P6 (STMICROELECTRONICS)
8 Bit MCU, Value Line, STM8 Family STM8S Series Microcontrollers, 16 МГц, 8 КБ, 1 КБ, 20 вывод(-ов)
The STM8S003F3P6 is a value line 8-bit Microcontroller offers 8kb flash program memory, plus integrated true data EEPROM. The value line device provides the following benefits performance, robustness and reduced system cost. Device performance and robustness are ensured by true data EEPROM supporting up to 100000 write/erase cycles, advanced core and peripherals made in a state-of-the-art technology at 16MHz clock frequency, robust I/Os, independent watchdogs with separate clock source and a clock security system.
- 16MHz Advanced STM8 Core with Harvard Architecture and 3-stage Pipeline
- Extended Instruction Set
- 8kb Flash Memory, Data Retention 20 Years at 55°C after 100 Cycles Program Memory
- 1kb RAM
- 128 байт True Data EEPROM, память данных со сроком службы до 100000 циклов записи/удаления
- Flexible Clock Control, 4 Master Clock Sources
- Low-power Crystal Resonator Oscillator
- External Clock Input
- Internal, User-trimmable 16MHz RC
- Internal Low-power 128kHz RC
- Clock Security System with Clock Monitor
- Low-power Modes (Wait, Active-halt, Halt)
- Switch-off Peripheral Clocks Individually
- Permanently Active, Low-consumption Power-on and Power-down Reset
- Nested Interrupt Controller with 32 Interrupts
- Up to 27 External Interrupts on 6 Vectors
- 16-bit, 4 CAPCOM channels, Dead-time insertion and flexible synchronization advanced control timer
- 16-bit General Purpose Timers with 3 CAPCOM Channels (IC, OC or PWM)
- 8-bit Basic Timer with 8-bit Pre-scaler
- Auto Wakeup Timer
Области применения
Встроенные Конструкции и Разработка, Обработка Сигнала, Компьютеры и Периферия
Предупреждения
Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Количество I/O:
16I/O
Количество Выводов:
20вывод(-ов)
Линейка Продукции:
STM8 Family STM8S Series Microcontrollers
Максимальное Напряжение Питания:
5.5В
Минимальное Напряжение Питания:
2.95В
Размер Памяти:
8КБ
Размер Памяти RAM:
1КБ
Семейство Микроконтроллера:
STM8
Серия Микроконтроллера:
STM8S
Скорость ЦПУ:
16МГц
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-

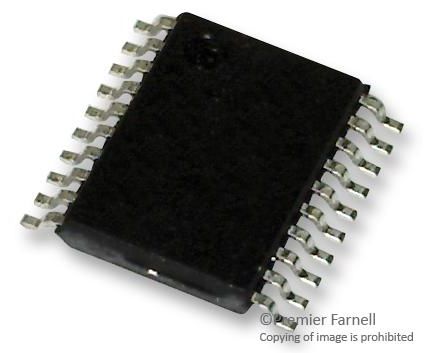

Стиль Корпуса Микроконтроллера:
TSSOP
Тип Встроенного Интерфейса:
I2C, SPI, UART
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
