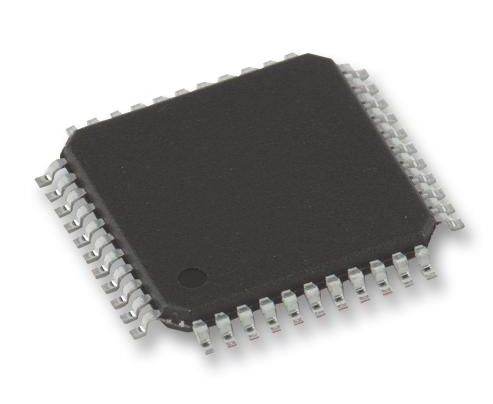

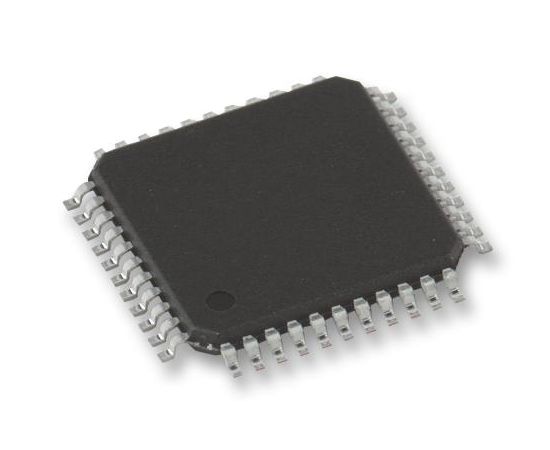

PIC16F877-20I/PT (MICROCHIP)
8 Bit MCU, Flash, PIC16 Family PIC16F8XX Series Microcontrollers, 20 МГц, 14 КБ, 368 Байт
The PIC16F877-20I/PT is a mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 14kB of addressable program memory size, 368bytes of data memory size and 8-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 20MHz with wide operating voltage of 2 to 5.5V.
- 35 (14-bit wide) easy instructions to learn
- 8 level hardware stack
- 1 (9-bit) file select register
- Hardware interrupt handling
- In-Circuit Serial Programming™ (ICSP™)
- Power on reset (POR)
- Power-up timer (PWRT)
- Oscillator start-up timer (OST)
- Programmable code protection
- Power saving SLEEP mode
- In-circuit debugging via two pins
- 256bytes of EEPROM data memory
- 2x Capture/Compare/PWM (ECCP)
- Two 8-bit digital timers
- One 16-bit digital timers
Области применения
Промышленное, Авто, Потребительская Электроника, Привод Двигателя и Управление, Освещение, Медицинское, Охрана
Количество I/O:
33I/O
Количество Выводов:
44вывод(-ов)
Линейка Продукции:
PIC16 Family PIC16F8XX Series Microcontrollers
Максимальное Напряжение Питания:
5.5В
Минимальное Напряжение Питания:
4В
Размер Памяти:
14КБ
Размер Памяти RAM:
368Байт
Семейство Микроконтроллера:
PIC16
Серия Микроконтроллера:
PIC16F8xx
Скорость ЦПУ:
20МГц
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Микроконтроллера:
TQFP
Тип Встроенного Интерфейса:
I2C, SPI, USART
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
