MSP430F2013IPW (TEXAS INSTRUMENTS)
Микроконтроллер MSP430, смешанных сигналов, MSP430 Family MSP430F2x Series Microcontrollers, MSP430
The MSP430F2013IPW is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1µs. The device configurations with 16-bit timer, 16-bit sigma-delta A/D converter and 10 general-purpose I/O pins. This device operates at a maximum frequency of 16MHz.
- 16-bit RISC architecture, 62.5ns instruction cycle time
- Internal frequencies up to 16MHz with four calibrated frequencies to ±1%
- Internal very-low-power low-frequency oscillator
- 32kHz Crystal
- External digital clock source
- 16-bit Timer_A with 2 Capture/Compare registers
- 16-bit sigma-delta A/D converter with differential PGA inputs and internal reference
- Universal serial interface (USI) supporting SPI and I2C
- Brownout detector
- Serial on-board programming
- No external programming voltage needed
- Programmable code protection by security fuse
- On-chip emulation logic with spy-bi-wire interface
- 220µA at 1MHz, 2.2V Active mode (AM) power consumption
Области применения
Считывание и Контрольно-измерительная Аппаратура, Радиочастотная Связь, Визуализация, Видео и Зрение
Архитектура:
MSP430
Количество I/O:
10I/O
Количество Бит:
16бит
Количество Выводов:
14вывод(-ов)
Линейка Продукции:
MSP430 Family MSP430F2x Series Microcontrollers
Максимальное Напряжение Питания:
3.6В
Минимальное Напряжение Питания:
1.8В
Размер Памяти:
2КБ
Размер Памяти RAM:
128Байт
Семейство Микроконтроллера:
MSP430
Серия Микроконтроллера:
MSP430F2x
Скорость ЦПУ:
16МГц
Соответствует Фталатам RoHS:
Да

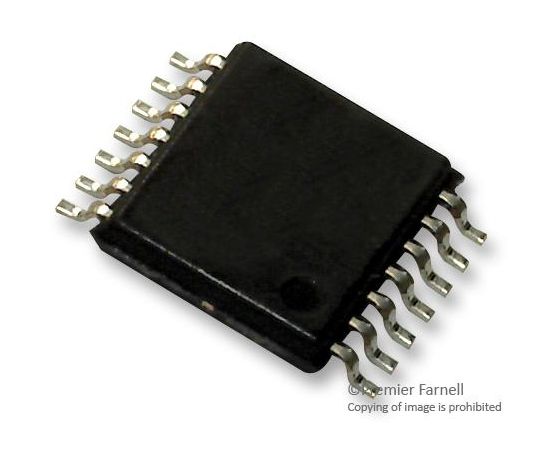

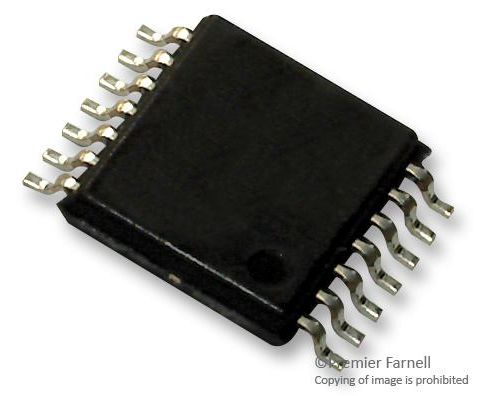

Стиль Корпуса Микроконтроллера:
TSSOP
Тип Встроенного Интерфейса:
I2C, SPI
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
