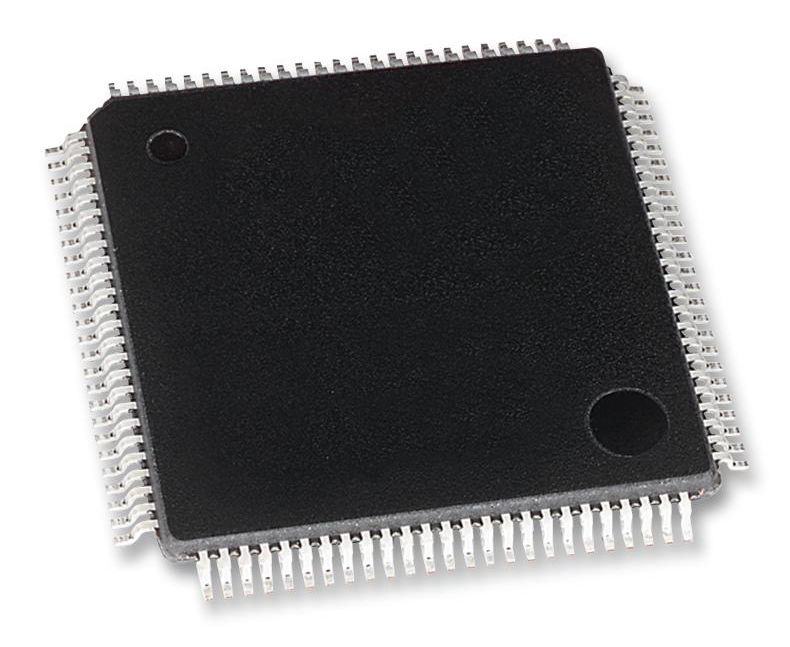

LPC11E68JBD100E (NXP)
Микроконтроллер ARM, LPC Family LPC1100 Series Microcontrollers, ARM Cortex-M0+, 32бита, 50 МГц
The LPC11E68JBD100E is a 32-bit Microcontroller based on ARM Cortex-M0+ core with RISC architecture operates at a maximum frequency of 50MHz. The ARM Cortex-M0+ is an easy-to-use, energy-efficient core using a two-stage pipeline and fast single-cycle I/O access. The device incorporates 256kB internal flash, 36kB internal RAM, 4kB EEPROM, both standard and configurable timers/PWMs for advanced timing requirements, 12-channel 12-bit A/D converter with sample rates of up to 2Msps and 80 general-purpose I/O pins. This device also features peripherals like five USARTs and two inter-integrated circuit (I2C).
- ARM Cortex-M0+ built-in Nested Vectored Interrupt Controller (NVIC)
- AHB multilayer matrix
- System tick timer
- Serial wire debug (SWD) and JTAG boundary scan modes supported
- Micro trace buffer (MTB) supported
- Flash in-application programming (IAP) and In-system programming (ISP)
- 32-bit Integer division routines
- Simple DMA engine with 16 channels and programmable input triggers
- Pin interrupt and pattern match engine using eight selectable GPIO pins
- Two GPIO group interrupt generators
- CRC Engine
- Configurable PWM/timer subsystem
- Windowed watchdog timer (WWDT)
- Real-time clock (RTC) in the always-on power domain
- Two SSP controllers with DMA support
- 12MHz Internal RC oscillator trimmed to 1 % accuracy
- 32kHz On-chip oscillator for RTC
- Crystal oscillator with an operating range of 1MHz to 25MHz
- Programmable watchdog oscillator with a frequency range of 9.4kHz to 2.3MHz
- PLL allows CPU operation up to the maximum CPU rate
Области применения
Измерительное, Связь и Сеть, Потребительская Электроника, Авто, Компьютеры и Периферия, Медицинское
Архитектура:
ARM Cortex-M0+
Количество I/O:
80I/O
Количество Бит:
32бита
Количество Выводов:
100вывод(-ов)
Линейка Продукции:
LPC Family LPC1100 Series Microcontrollers
Максимальное Напряжение Питания:
3.6В
Минимальное Напряжение Питания:
2.4В
Размер Памяти:
256КБ
Размер Памяти RAM:
36КБ
Семейство Микроконтроллера:
LPC
Серия Микроконтроллера:
LPC1100
Скорость ЦПУ:
50МГц
Соответствует Фталатам RoHS:
Да
Стиль Корпуса Микроконтроллера:
LQFP
Тип Встроенного Интерфейса:
I2C, SPI, UART, USB
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
