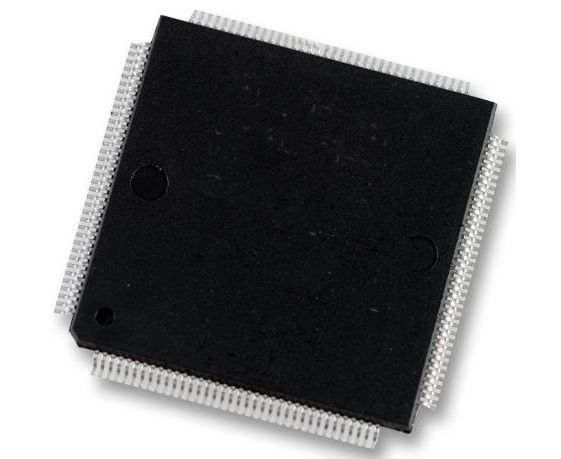

C167CRL33MHAKXQLA1 (INFINEON)
Микроконтроллер, AEC-Q100, C166, 16бит, 33 МГц, 4 КБ
The SAK-C167CR-L33M HA+ is a 16-bit single-chip CMOS Microcontroller combines high CPU performance (up to 16.5 million instructions per second) with high peripheral functionality and enhanced IO-capabilities. They also provide clock generation via PLL and various on-chip memory modules such as program ROM, internal RAM and extension RAM. The architecture combines advantages of both RISC and CISC processors and of advanced peripheral subsystems in a very well-balanced way. In addition the on-chip memory blocks allow the design of compact systems with maximum performance.
- High performance 16-bit CPU with 4-stage pipeline
- 80/60ns Instruction cycle time at 25/33MHz CPU clock
- 16 Priority-level interrupt system with 20 Sources, sample-rate down to 40ns
- 8-channel Interrupt-driven single-cycle data transfer facilities via peripheral event controller
- Clock generation via prescaler or via direct clock input
- 2kB On-chip extension RAM (XRAM)
- 16-channel 10-bit ADC with programmable conversion time down to 7.8µs
- Two 16-channel capture/compare units
- 4-channel PWM unit
- Two multi-functional general purpose timer units with 5 timers
- Two serial channels (synchronous/asynchronous and high-speed-synchronous)
- On-chip CAN Interface (Rev. 2.0B active) with 15 Message objects (Full CAN/Basic CAN)
- Up to 16MB external address space for code and data
- Idle and power down modes
- Programmable watchdog timer and oscillator watchdog
- On-chip bootstrap loader
Области применения
Промышленное
Архитектура:
C166
Количество I/O:
111I/O
Количество Бит:
16бит
Количество Выводов:
144вывод(-ов)
Линейка Продукции:
-
Максимальное Напряжение Питания:
5.5В
Минимальное Напряжение Питания:
4.5В
Размер Памяти:
-
Размер Памяти RAM:
4КБ
Скорость ЦПУ:
33МГц
Соответствует Фталатам RoHS:
Будет Указано Позже
Стиль Корпуса Микроконтроллера:
MQFP
Тип Встроенного Интерфейса:
CAN, SPI, USART
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
