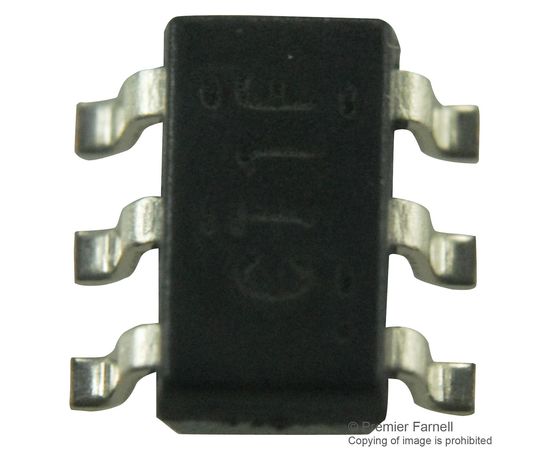

SN74LVC1T45DBVR (TEXAS INSTRUMENTS)
Приемопередатчик, неинвертирующий, 3 состояния, 1 вход, 1.65В до 5.5В, SOT-23-6
The SN74LVC1T45DBVR is a Single-bit Dual-supply Bus Transceiver with configurable voltage translation and 3-state outputs. This single-bit non-inverting bus transceiver uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 to 5.5V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 to 5.5V. This allows for universal low-voltage bidirectional translation between any of the 1.8, 2.5, 3.3 and 5V voltage nodes. Designed for asynchronous communication between two data buses. The logic levels of the direction-control (DIR) input activate either the B-port outputs or the A-port outputs. The device transmits data from the A bus to the B bus when the B-port outputs are activated and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports always is active and must have a logic HIGH or LOW level applied to prevent excess ICC and ICCZ.
- Port to operate over full 1.65 to 5.5V power supply range
- VCC isolation feature
- DIR input circuit referenced to VCCA
- Low power consumption, 4µA maximum ICC
- ±24mA Output drive at 3.3V
- Ioff supports partial power-down mode operation
- 420, 210, 140 and 75Mbps Maximum data rates
- Latch-up performance exceeds 100mA per JESD 78, class II
- Green product and no Sb/Br
Области применения
Потребительская Электроника, Переносные Устройства, Промышленное, Коммерческое, Связь и Сеть
Предупреждения
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
Базовый Номер / Семейство Логики:
74LVC1T245
Базовый Номер Микросхемы Логики:
741T245
Количество Выводов:
6вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальное Напряжение Питания:
5.5В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
1.65В
Семейство Логической Микросхемы:
74LVC
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Микросхемы Логики:
SOT-23
Тип Логического Устройства:
Приемопередатчик, Неинвертирующий
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
