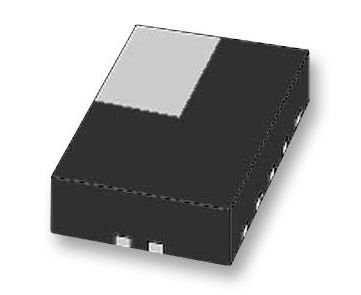

SN74LVC125ARGYR (TEXAS INSTRUMENTS)
Буфер, неинвертирующий, 1.65В до 3.6В, VQFN-14
The SN74LVC125ARGYR is a quadruple Bus Buffer Gate designed for 1.65 to 3.6V VCC operation. This device features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is high. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pull-up resistor and the minimum value of the resistor is determined by the current-sinking capability of the driver. Inputs can be driven from either 3.3/5V devices. This feature allows the use of this device as a translator in a mixed 3.3/5V system environment.
- Separate OE for all 4 buffers
- Latch-up performance exceeds 250mA per JESD 17
- Inputs accept voltages to 5.5V
- 4.8ns at 3.3V Propagation delay (tpd)
- <0.8V at VCC = 3.3V, TA = 25°C VOLP (output ground bounce)
- >2V at VCC = 3.3V, TA = 25°C VOHV (output VOH undershoot)
- Green product and no Sb/Br
Области применения
Связь и Сеть, Потребительская Электроника, Беспроводное, Визуализация, Видео и Зрение, Обработка Сигнала, Радиочастотная Связь, Считывание и Контрольно-измерительная Аппаратура
Базовый Номер / Семейство Логики:
74LVC125
Базовый Номер Микросхемы Логики:
74125
Количество Выводов:
14вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
125°C
Максимальное Напряжение Питания:
3.6В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
1.65В
Семейство Логической Микросхемы:
74LVC
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Микросхемы Логики:
VQFN
Тип Логического Устройства:
Буфер, Неинвертирующий
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
