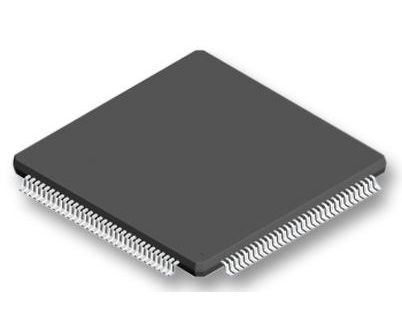

TMS320F2811PBKA (TEXAS INSTRUMENTS)
Контроллер Цифровых Сигналов, Серия TMS320F28xx, 150 МГц, 256 КБ, 56 I/O, CAN, SCI, SPI, 1.9 В
The TMS320F2811PBKA is a Digital Signal Processor features high-performance static CMOS technology and peripheral interrupt expansion (PIE) block that supports 45 peripheral interrupts. JTAG boundary scan support IEEE standard 1149.1-1990 IEEE standard test access port and boundary-scan architecture.
- High-performance 32-bit CPU
- Harvard bus architecture
- Atomic operations
- Fast interrupt response and processing
- Unified memory programming model
- 4M Linear program/data address reach
- Code-efficient (in C/C++ and assembly)
- Up to 128K x 16 flash device (four 8K x 16 and six 16K x 16 sectors)
- Up to 128K x 16 ROM
- Boot ROM (4K x 16) - With software boot modes and standard math tables
- Clock and system control - Dynamic PLL ratio changes supported and on-chip oscillator
- Three external interrupts
- Protects Flash/ROM/OTP and L0/L1 SARAM
- Motor control peripherals - Two event managers (EVA, EVB) and compatible to 240xA devices
- Serial peripheral interface (SPI)
- Two serial communications interfaces (SCIs), standard UART
- Enhanced controller area network (eCAN)
- Multichannel buffered serial port (McBSP)
Области применения
Промышленное
Количество I/O:
56I/O
Количество Выводов:
128вывод(-ов)
Линейка Продукции:
Серия TMS320F28xx
Максимальная Рабочая Температура:
85°C
Максимальное Напряжение Питания:
1.89В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
1.71В
Напряжение Питания Ядра:
1.9В
Размер Флэш-памяти:
256КБ
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Контроллера Цифровых Сигналов:
LQFP
Тип Встроенного Интерфейса:
CAN, SCI, SPI
Частота Ядра:
150МГц
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
