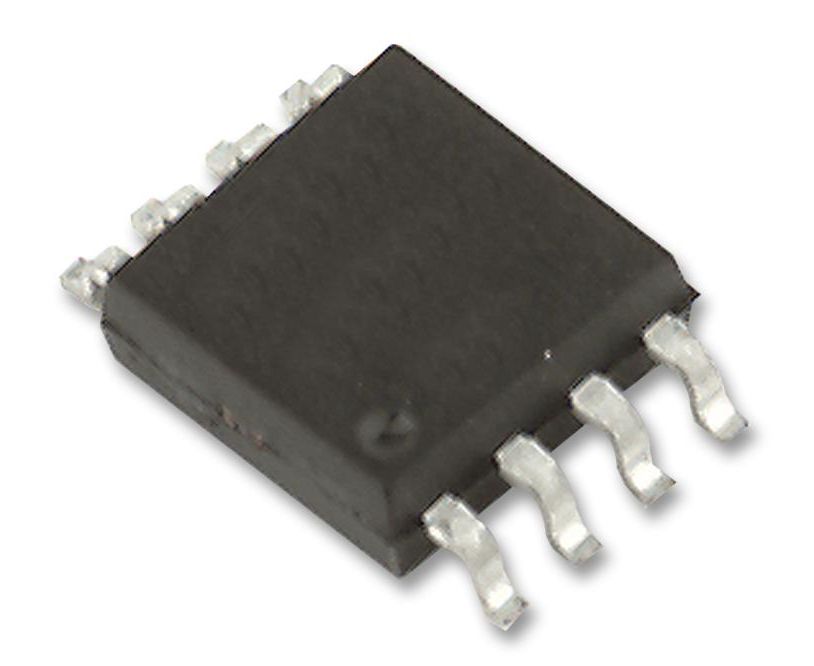

TCA9517DGKR (TEXAS INSTRUMENTS)

The TCA9517DGKR is a bidirectional Buffer with level shifting capabilities for I?C and SMBus systems. It provides bidirectional voltage-level translation (up-translation/down-translation) between low voltages and higher voltages (2.7 to 5.5V) in mixed-mode applications. This device enables I?C and SMBus systems to be extended without degradation of performance, even during level shifting. The TCA9517 buffers both the serial data and the serial clock signals on the I?C bus, thus allowing two buses of up to 400pF bus capacitance to be connected in an I?C application. It has two types of drivers: A-side drivers and B-side drivers. All inputs and I/Os are over-voltage tolerant to 5.5 V, even when the device is unpowered (VCCB and/or VCCA = 0 V). The type of buffer design on the B-side prevents it from being used in series with devices which use static voltage offset.
