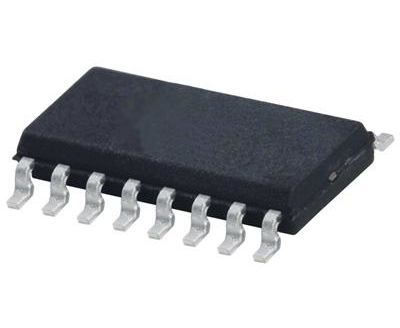

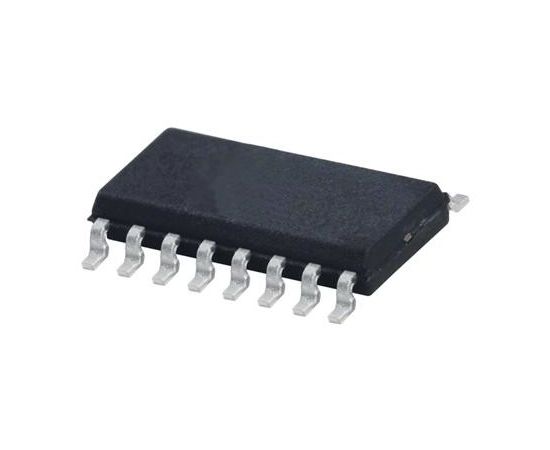

ADM2482EBRWZ (ANALOG DEVICES)
Приемопередатчик RS485, 3В-3.6В, SOIC-16
The ADM2482EBRWZ is an Isolated RS-485 Transceiver with integrated transformer driver suitable for high speed, half-duplex or full-duplex communication on multipoint transmission lines. For half-duplex operation, the transmitter outputs and receiver inputs share the same transmission line. Transmitter output pin Y is linked externally to receiver input pin A and transmitter output pin Z to receiver input pin B. The device employs the iCoupler® technology to combine a 3-channel isolator, a three-state differential line driver and a differential input receiver. An on-chip oscillator outputs a pair of square waveforms that drive an external transformer to provide isolated power. The ADM2482E driver has an active high enable and the receiver has an active low enable. The driver output enters a high impedance state when the driver enable signal is low. The receiver output enters a high impedance state when the receiver enable signal is high.
- Isolated RS-485/RS-422 transceivers, configurable as half duplex or full duplex
- Integrated oscillator driver for external transformer
- ±15kV ESD protection on RS-485 input/output pins
- Complies with TIA/EIA-485-A-98 and ISO 8482:1987 (E)
- 500kbps/16Mbps Data rate
- 256 Nodes on bus
- True fail-safe receiver inputs
- Thermal shutdown protection
Области применения
Обработка Сигнала, Связь и Сеть
Предупреждения
ESD sensitive device, take proper precaution while handling the device.
Количество Выводов:
16вывод(-ов)
Количество Приводов:
1драйвер(-ов)
Количество Приемников:
1Receivers
Линейка Продукции:
ADM2482E Series
Максимальная Рабочая Температура:
85°C
Максимальное Напряжение Питания:
3.6В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
3В
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Привода:
SOIC
Тип Интерфейса ИС:
RS485
Тип Устройства:
RS485 Приемопередатчик
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
RoHS статус:
Да
