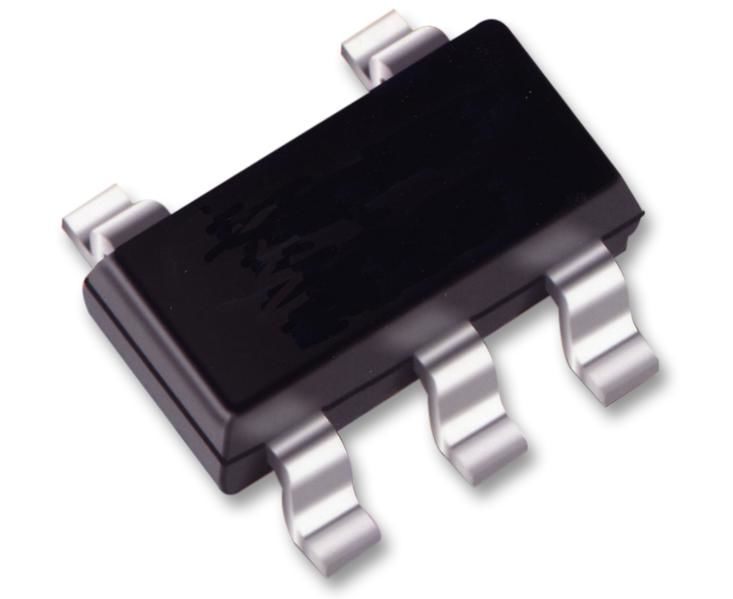

SN65LVDS2DBVT (TEXAS INSTRUMENTS)
Дифференциальный драйвер линии, 1 драйвер(-ов), Да
The SN65LVDS2DBVT is a single low voltage differential line driver and receiver with LVDS input and LVTTL output. This device is used with a LVDS receiver in a point-to-point connection, data or clocking signals can be transmitted over printed-circuit board traces or cables at very high rates with very low electromagnetic emissions and power consumption. The low power, low EMI, high ESD tolerance and wide supply voltage range make the device ideal for battery-powered applications.
- Receiver output and inputs are high-impedance with VCC
- Receiver has open-circuit, fail-safe design
- Differential input voltage threshold less than 100mV
- Green product and no Sb/Br
Области применения
Беспроводное, Связь и Сеть, Переносные Устройства
Предупреждения
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
Количество Приводов:
1драйвер(-ов)
Линейка Продукции:
-
Соответствует Фталатам RoHS:
Да
Тип Интерфейса ИС:
-
Тип упаковки:
Катушка
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
