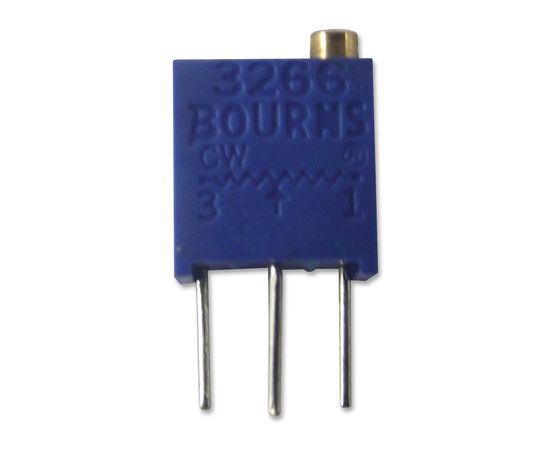

3266W-1-102LF (BOURNS)
Подстроечный потенциометр, 1 кОм, 12 виток(-ков), Сквозное Отверстие, Серия Trimpot 3266, 250 мВт
The 3266W-1-102LF is a 1/4-inch Square Trimpot® Trimming Potentiometer with multiturn/cermet/industrial/sealed and through hole mount. Standoffs allow thorough PC board washing and power rating of 0.25W and temperature coefficient of ±100ppm/°C.
- 1000MR Insulation resistance
- 600V Dielectric strength
- UL94V-0 Flammability
- Solderable pins
- Adjustment angle 12 turns
- ±10% tolerance
- Temperature coefficient is ±100ppm/°C
- Operating temperature ranges from -55°C to +125°C
- Power rating is 0.25W
- Standoffs allow thorough PC board cleaning
Области применения
Промышленное, Потребительская Электроника, Переносные Устройства, Управление Питанием
