NFM21PS106B0J3D (MURATA)
Фильтр ЛЭП, 10 мкФ, 6.3 В DC, От Электромагнитных Помех, от Радиопомех, 4 А

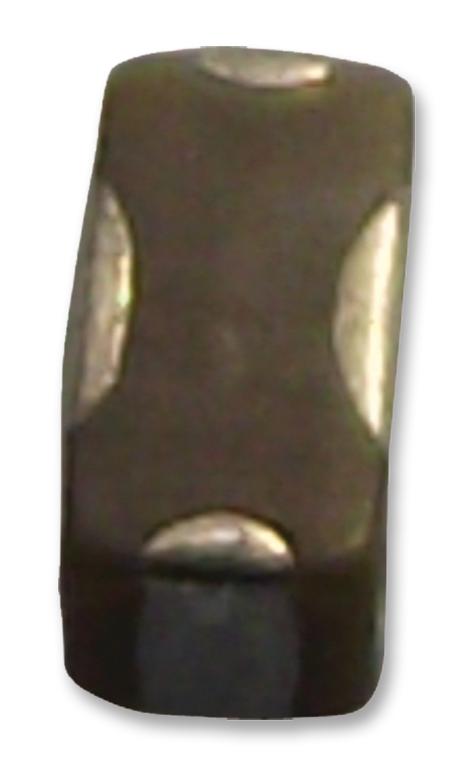

The NFM21PS106B0J3D is a CHIP EMIFIL® Power Line Filter designed for noise suppression. Its inner structure is like a feed-through capacitor, makes its ground impedance quite low. The 3-terminal capacitor has a good noise suppression effect at a high frequency range up to several hundred MHz. It is suitable for use in noise suppression in low speed signal lines and general electronic equipment.
- REACH compliant
- Low ESL
- Standard of 3-terminal capacitor
- 10mR Maximum DC resistance
- 50MR Minimum insulation resistance
- -40 to 85°C Operating temperature range
- High Insertion Loss
Области применения
Связь и Сеть
Предупреждения
The excessive heat by other products may cause deterioration of insulation resistance and excessive heat at this product, resulting in a fire.
Емкость:
10мкФ
Линейка Продукции:
-
Максимальный Ток Утечки:
-
Минимальная Индуктивность:
-
Номинальное Напряжение:
6.3В DC
Соединители Фильтра:
SMD (Поверхностный Монтаж)
Тип упаковки:
Разрезная лента
Тип Фильтра:
От Электромагнитных Помех, от Радиопомех
Ток:
4А
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
