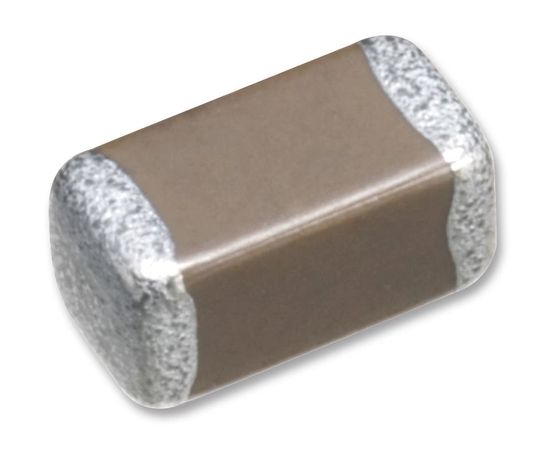

06035A101JAT2A (AVX)

Многослойный керамический конденсатор, 100 пФ, 50 В, 0603 [1608 Метрический], ± 5%, C0G / NP0

The AVX multilayer ceramic capacitors with EIA class I, C0G (NP0) dielectric material are highly stable ceramic chip capacitors for general purpose applications. This multilayer ceramic capacitor is a monolithic block of ceramic containing two sets of offset, interleaved planar electrodes that extend to two opposite surfaces of ceramic dielectric.

Capacitance value ranges from 0.5pF to 0.1µF
EIA 0101, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 1825, 2220, 2225 case sizes available
Rated DC voltage of 6.3V, 10V, 16V, 25V, 50V, 100V, 200V, 500V
±0.10pF, ±0.25pF, ±0.50pF, ±1%, ±2%, ±5% and ±10% tolerance
Nickel (Ni) and tin (Sn) plated terminations
Load life of 1000h at 125?C
Operating temperature range from -55?C to 125?C
