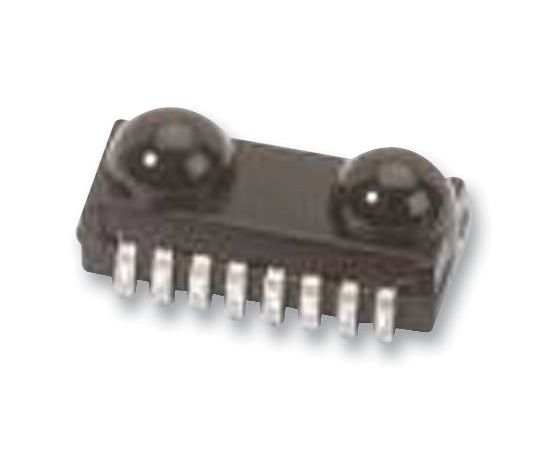

TFDU4101-TR3 (VISHAY)

F1652524
нет данных

ИК приемопередатчик, 115.2 Кбит/с, 2.4 В, 5.5 В, 90 мкА, 1 м, 900 нм

Документация
Technical Data Sheet EN

БрендVISHAY НаименованиеTFDU4101-TR3 Цена заШтука (Поставляется на разрезной ленте) Страна производстваPhilippines СкладFarnell

ИК приемопередатчик, 115.2 Кбит/с, 2.4 В, 5.5 В, 90 мкА, 1 м, 900 нм

The TFDU4101-TR3 is an Infrared Transceiver module compliant to the latest IrDA® physical layer standard for fast infrared data communication, supporting IrDA speeds up to 115.2kbit/s (SIR) and carrier based remote control modes. Integrated within the transceiver module is a photo pin diode, an infrared emitter (IRED) and a low-power control IC to provide a total front-end solution in a single package. This device covers the full IrDA range of more than 1m using the internal intensity control. With one external current control resistor the current can be adjusted for shorter ranges saving operating current operating in IrDA low power mode.
  • High efficiency emitter
  • Tri-state-receiver output, floating in shut down with a weak pull-up

Области применения

Потребительская Электроника, Медицинское, Промышленное

Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальная Скорость Передачи Данных:
115.2Кбит/с
Максимальное Напряжение Питания:
5.5В
Минимальная Рабочая Температура:
-30°C
Минимальное Напряжение Питания:
2.4В
Пиковая Длина Волны:
900нм
Расстояние Передачи Данных:
Ток Питания:
90мкА
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
