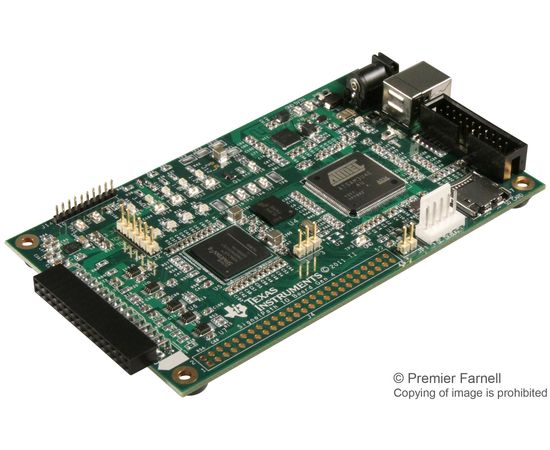

SPIO-4/NOPB (TEXAS INSTRUMENTS)
Оценочная плата, AFE датчика, микроконтроллер Atmel SAM3U, разъем IDE
The SPIO-4/NOPB digital controller board is used to read registers, write registers, and capture data from various sensor AFE and other signal path products. The device evaluation board (for example: LMP90100EB) should be equipped with the GPSI-16 or GPSI-32 header to connect to the SPIO-4 board, which contains a USB port to connect to the PC with a sensor AFE development platform software. Each device has a separate development platform software with a common look and feel. The software enables design engineers to quickly evaluate each sensor AFE or other signal path product.
- SAM3U microcontroller (ARM Cortex M3 core)
- Maximum serial clock rate of 80MHz
- Xilinx XC6SLX16 FPGA
- Standard GPSI-16 connector that allows connection to many precision signal path devices
- Capable of storing up to 8MBytes of signal-path data
- DUT interface can be SPI, I2C or parallel
- Powered either by PC via USB or external supply
- Supports jumper less, plug and play configuration
Области применения
Автоматизация и Управление Процессами, Промышленное, Тестирование и Измерение
Содержание
SPIO-4 Board, USB cable, Users Guide, WaveVision-5 GUI software.
Количество Бит:
16бит
Линейка Продукции:
-
Номер Ядра Чипа:
-
Подтип Приложения:
Аналоговый Front End
Производитель Чипа:
-
Содержимое Комплекта:
Плата контроллера SPIO-4, USB кабель, руководство пользователя,
Тип Приложения Набора:
Преобразователь Данных
Частота Выборки:
250Квыборок/с
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
