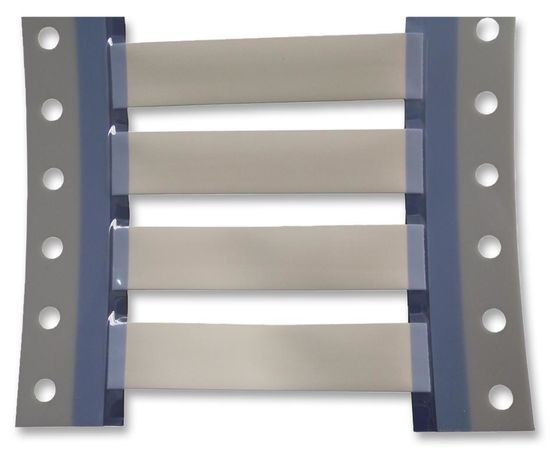

TMS-SCE-1/4-2.0-9 (RAYCHEM - TE CONNECTIVITY)
Маркер для кабеля, TMS SCE Thin Wall, Термоусадочный Кожух, PO (Полиолефин), Белый, 6.35мм x 50мм
The TMS-SCE-1/4-2.0-9 is a military-grade Heat Shrinkable Sleeve designed to meet the wire and cable marking needs with high performance requirements and is made from durable, flame retardant, radiation cross-linked polyolefin. The marks are permanent immediately after printing and remain legible even when exposed to abrasion, aggressive cleaning solvents and military fuels and oils. The lightweight 3:1 ratio provides extremely fast shrinking and covers a wider range of wire diameters. It is designed to be printed by computer-driven dot matrix or thermal transfer printers, providing several advantages in terms of reduced errors and cycle time.
- Permanent identification sleeve
- Quick recovery for heat sensitive areas
- 10.3MPa minimum tensile strength
- 19.7MV/m minimum dielectric strength
- -55 to 135°C Temperature range
- 85°C minimum recovery temperature
- 40°C Maximum storage temperature
Области применения
Оборона, Военная и Авиационно-космическое
Легенда:
-
Линейка Продукции:
-
Максимальный Внутренний Диаметр:
5.46мм
Материал Маркера:
PO (Полиолефин)
Минимальный Внутренний Диаметр:
2.31мм
Отношение Усадки:
3:1
Размеры Маркера:
6.35мм x 50мм
Тип Маркера:
Термоусадочный Кожух
Цвет Маркера:
Белый
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
