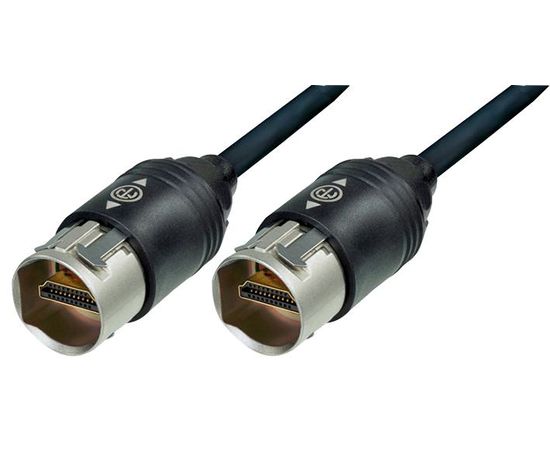

NKHDMI-3 (NEUTRIK)
Аудио / Видео кабель в сборке, Штекер HDMI A, Штекер HDMI A, 9.843 фут, 3 м, NKHDMI Series
The NKHDMI-3 from Neutrik is a 3meter HDMI 1.4 patch cable. This HDMI 1.4 patch cable has overmolded flex relief and rugged metal cable carrier fit and lock with NAHDMI-W-* series. It is used for the transmission of any digital TV and PC video format including high-definition video (HDTV) can be integrated in networks very easy.
- HDMI 1.4 has data rate up to 10.2GBit/s
- Dust and water resistant according to IP65 safety standard in combination with NAHDMI-W*
- Push pull mating design provides secure locking system if mated with NAHDMI-W
- Shielded connection with high noise immunity and EMI protection
- Removable rugged die-cast cable carrier
- Mates with conventional HDMI receptacles if cable carrier is removed
- Minimum bending radius allowed is 40mm
- Brass with gold plating contacts and zinc die-cast with nickel plating shell
- Temperature range from -25°C to +85°C
- Flammability rating meets UL94V-0
Области применения
Мультимедиа, Визуализация, Видео и Зрение, Аудио
Длинна Кабеля - Дюймовый:
9.843фут
Длинна Кабеля - Метрическая:
3м
Линейка Продукции:
NKHDMI Series
Соединитель Типа A:
Штекер HDMI A
Тип Соединителя B:
Штекер HDMI A
Цвет Внешней Изоляции:
-
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
