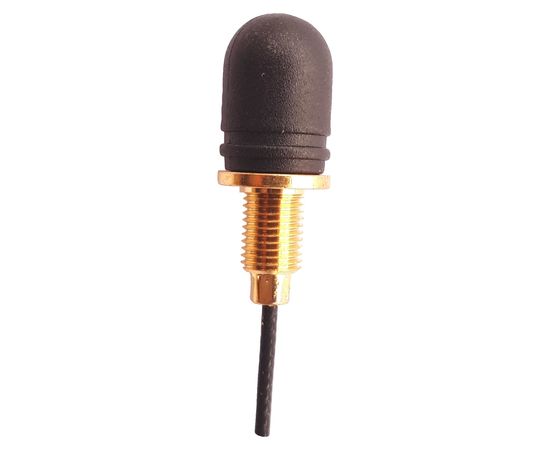

TANGO28/0.1M/IPEX/S/S/35 (SIRETTA)
Stubby Antenna, 2.4GHz to 2.5GHz, 1.7 VSWR, 0dBi Gain, 50ohm, Panel Mounting
The Tango 28 is a very small panel mount WiFi / Bluetooth antenna. The standard version comes with 100mm of 1.13mm O cable and an IPEX / uFL connector. The Tango28 is ideal for Bluetooth, WiFi and Zigbee enabled IOT devices where the small size and panel mounting enable flexibility in mounting locations. The small diameter, short cable with IPEX connector allows for simple routing and connection onto the PCB. This antenna is suitable for use indoors and ideal for terminals needing local network access without an unsightly large antenna.
- Ideal for Bluetooth, WiFi and Zigbee enabled IOT devices where the small size and panel mounting enable flexibility in mounting locations
- The small diameter, short cable with IPEX connector allows for simple routing and connection onto the PCB
- Electric Wave : 5/8, Monopole Antenna
- Connector: iPex, GSC or optional
- Cable: OD 1.13mm, RG178
- Operating Temperature: -25 to +75°C
- Storage Temperature: -35 to +75°C
- Antenna length: 12.3mm
Входная Мощность:
-
Входной Импеданс:
50Ом
Коэффициент Стоячей Волны Напряжения:
1.7
Линейка Продукции:
-
Максимальная Частота:
2.5ГГц
Минимальная Частота:
2.4ГГц
Монтаж Антенны:
Панель
Поляризация Антенны:
-
Тип Антенны:
Короткая
Усиление:
0дБи
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
