MSP-EXP430FR5994 (TEXAS INSTRUMENTS)

F2664588
нет данных

Комплект разработчика, микроконтроллер MSP430FR5994 LaunchPad, 256КБ FRAM, встроенный отладчик

Документация
  element14 Technical Page (151.80KB) EN
Operating Instructions EN

БрендTEXAS INSTRUMENTS НаименованиеMSP-EXP430FR5994 Цена заШтука Страна производстваUnited States СкладFarnell

Комплект разработчика, микроконтроллер MSP430FR5994 LaunchPad, 256КБ FRAM, встроенный отладчик

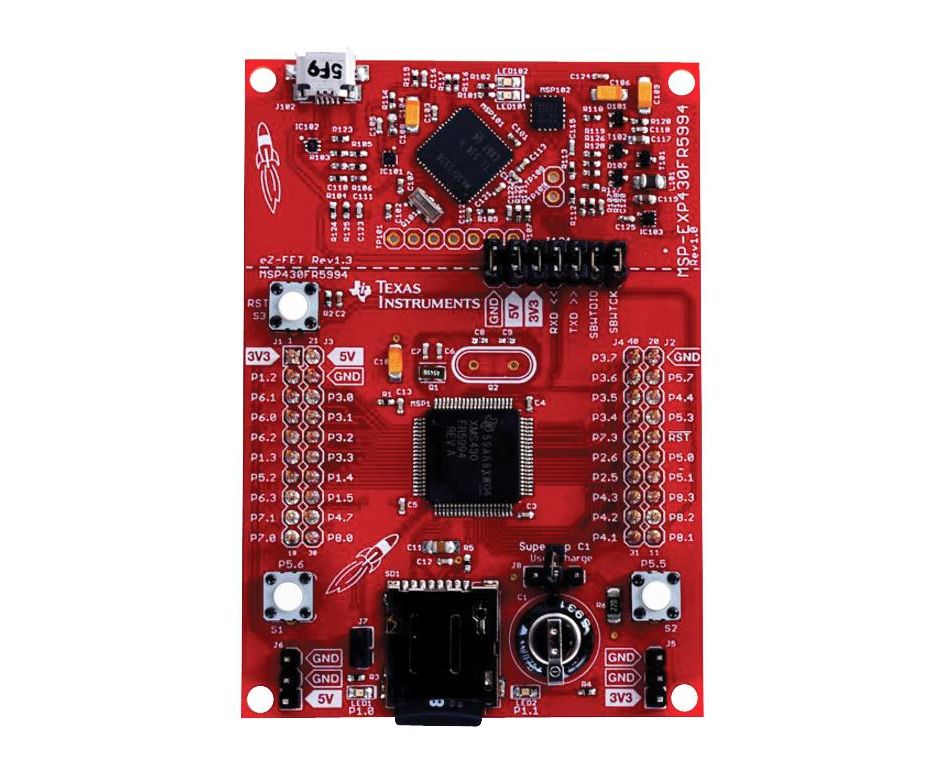

The MSP-EXP430FR5994 is a MSP430FR5994 LaunchPad development kit. MSP-EXP430FR5994 LaunchPad development kit is an easy-to-use evaluation module (EVM) for the MSP430FR5994 microcontroller (MCU). It contains everything needed to start developing on the ultra-low-power MSP430FRx FRAM microcontroller platform, including on-board debug probe for programming, debugging and energy measurements. The board features on-board buttons and LEDs for quick integration of a simple user interface as well as an SD card port allowing the user to interface with SD cards, as well as a super capacitor (super cap) that enables standalone applications without an external power supply. The MSP430FR5994 device features 256KB of embedded FRAM, a non-volatile memory known for its ultra-low power, high endurance and high speed write access. The device also features 8KB of SRAM, 16MHz CPU speed and has integrated peripherals for communication, ADC, timers, AES encryption, low-energy accelerator.
  • MSP ULP FRAM technology based MSP430FR5994 16bit MCU
  • EnergyTrace++ technology available for ultra low power debugging
  • 40 pin LaunchPad standard leveraging the BoosterPack ecosystem
  • On-board eZ-FET debug probe
  • 2 buttons and 2 LEDs for user interaction
  • On-board micro SD card
  • Super capacitor (0.22F)

Области применения

Встроенные Конструкции и Разработка

Содержание

MSP-EXP430FR5994 LaunchPad development kit, Micro USB cable, Quick start guide.

Архитектура Ядра:
MSP430
Количество Бит:
16бит
Линейка Продукции:
-
Название Семейства Чипа:
MSP430FRxx
Номер Ядра Чипа:
MSP430FR5994
Подархитектура Ядра:
-
Производитель Чипа:
Texas Instruments
Содержимое Комплекта:
LaunchPad Dev Board MSP430FR5994, USB Cable, Quick Start Guide
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
