STM32100E-EVAL (STMICROELECTRONICS)
Оценочная плата, микроконтроллер STM32F100, инструмент ST-LINK/V2, HDMI, CEC подключение

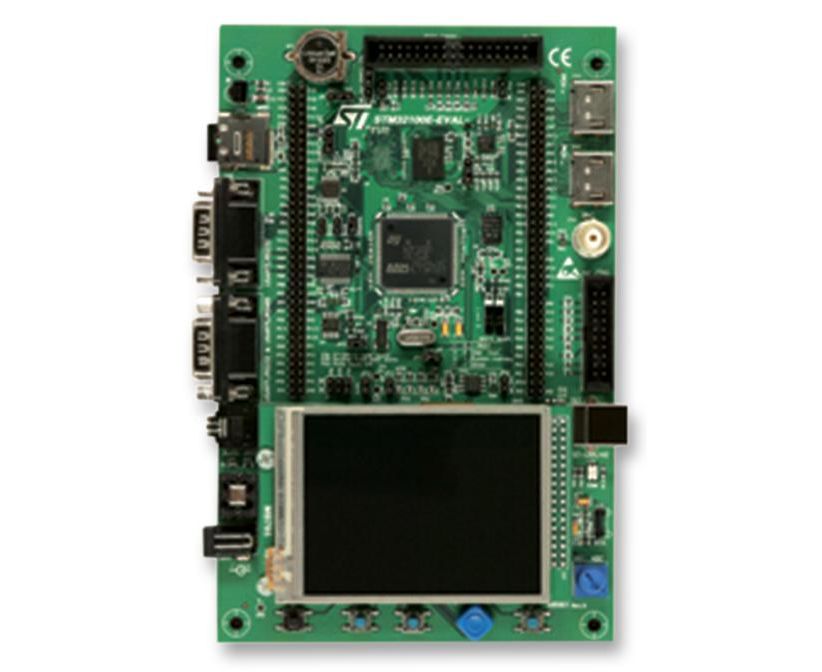

The STM32100E-EVAL evaluation board is designed as a complete development platform for the STMicroelectronics ARM®Cortex-M3 core-based STM32F100 microcontroller. A full range of hardware features helps the user to evaluate all peripherals and develop own applications. Extension headers facilitate the connection of a daughterboard or wrapping board for a specific application.
- HDMI with CEC connection
- RTC with backup battery
- Speaker
- 4 LEDs
- Reset, wakeup, tamper and user buttons
- Joystick with 4-direction control and selector
- 3.2" TFT colour LCD with touch screen
- JTAG and SWD debug support
- Inductor motor control connector
- IR receiver
- IrDA transceiver
- 1-channel RS-485 communication interface sharing the USART1 connector
- 2-channel RS-232 communication interface with RTS/CTS handshake support on one channel
- I2C/SMBus compatible serial interface temperature sensor
- Embedded ST-LINK/V2 debugger and programmer
- 64 Kbits of EEPROM
- 2 Mbytes of SRAM
- 16 Mbytes of serial Flash memory
- 1 Gbyte (or more) MicroSD card
- Boot from user Flash, system memory or SRAM
Области применения
Встроенные Конструкции и Разработка, Связь и Сеть, Аудио, Визуализация, Видео и Зрение
Архитектура Ядра:
ARM
Количество Бит:
32бита
Линейка Продукции:
-
Название Семейства Чипа:
STM32F100xx
Номер Ядра Чипа:
STM32F100
Подархитектура Ядра:
Cortex-M3
Производитель Чипа:
STMicroelectronics
Содержимое Комплекта:
Оценочная плата STM32F100
SVHC (Особо Опасные Вещества):
No SVHC (17-Dec-2015)
RoHS статус:
Да
