PESD1CAN-UX (NEXPERIA)
Защитное устройство от ЭСР, 50 В, SOT-323, 3 вывод(-ов), 150 Вт, PESD1 Series

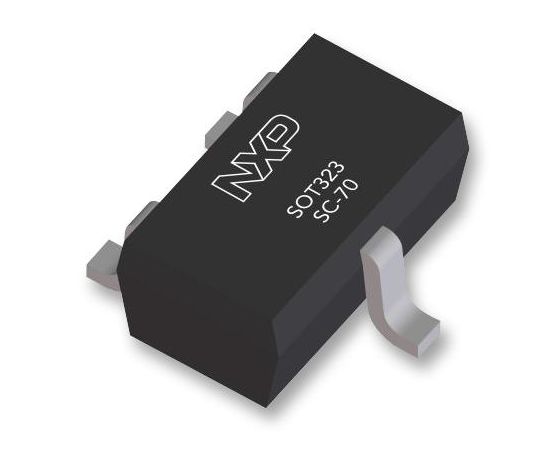

The PESD1CAN-U from NXP is a CAN bus ESD protection diode in 3pin SOT-323 package. This device is designed to protect two automotive CAN (Controller Area Network) bus lines from damage caused by ESD and other transients. The PESD1CAN-U is suitable on lines where the signal polarities are both positive and negative with respect to ground.
- Automotive grade AEC-Q101 qualified
- Low clamping voltage (VCL) of 35V at Ipp=1A
- Diode capacitance of 9.3pF at f= 1MHz and VR=0V
- ESD protection up to 23KV according to IEC 61000-4-2 level 4
- Rated peak pulse current (Ippm) of 3A according to IEC 61000-4-5 (surge) at tp=8/20µs
- Ambient temperature range from -55°C to 150°C
- Reverse standoff voltage (Vrwm) of 24V
- Typical diode capacitance matching is 0.1%
- Breakdown voltage (Vbr) of 27.8V at IR=5mA
- Rated peak pulse power (Pppm) of 150W
Области применения
Безопасность, Авто
Предупреждения
Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Количество Выводов:
3вывод(-ов)
Линейка Продукции:
PESD1 Series
Максимальное Фиксированное Напряжение:
50В
Рабочее Напряжение:
-
Рассеиваемая Мощность:
150Вт
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Диода:
SOT-323
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
