5.0SMDJ36A (BOURNS)
Защитное устройство от ЭСР, 58.1 В, DO-214AB, 2 вывод(-ов), 36 В, 6.5 Вт, 5.0SMDJ Series

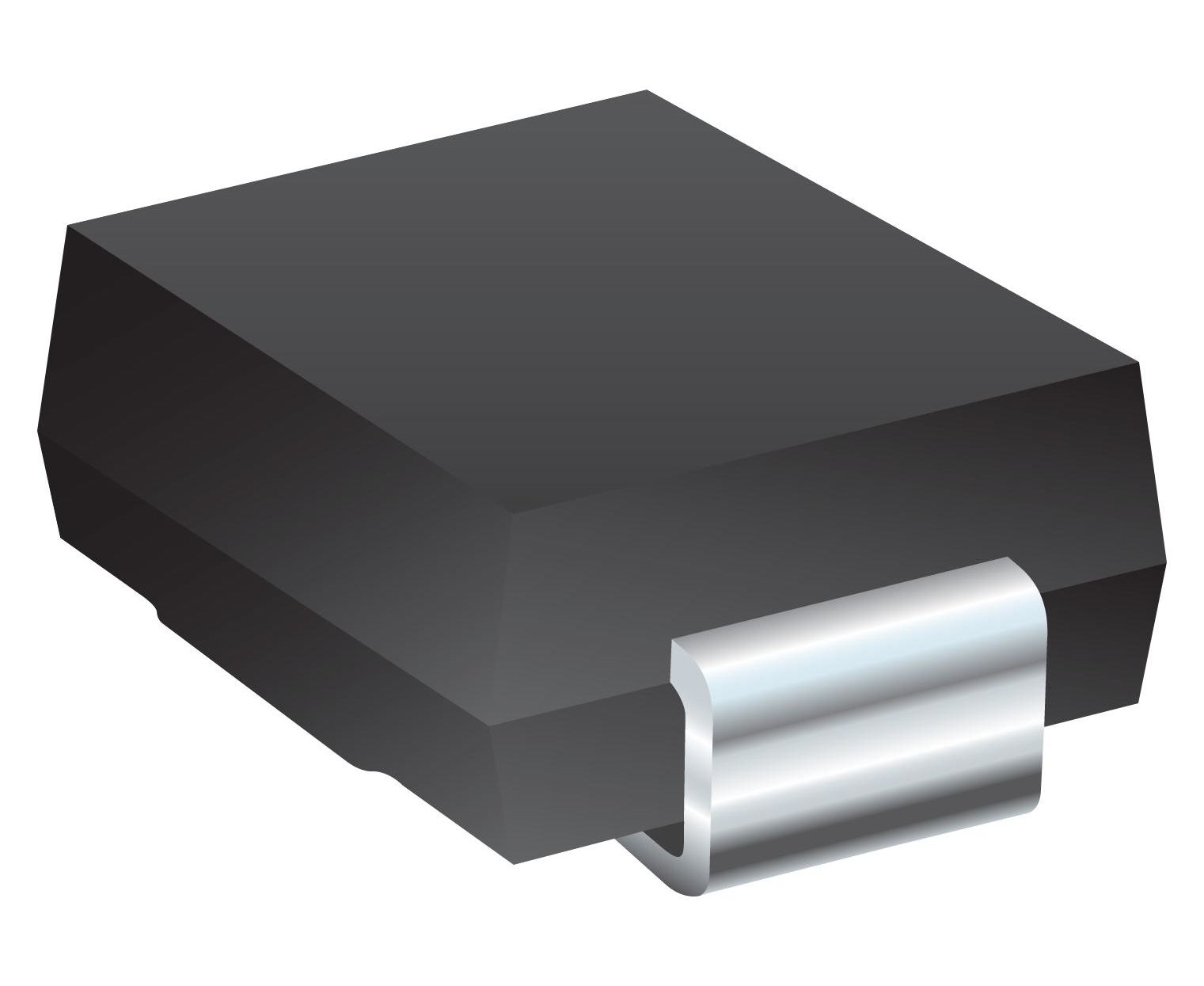

The 5.0SMDJ36A from Bourns is a 5000W, unidirectional, 5.0SMDJ series transient voltage suppression diode. Bourns offer transient voltage suppressor diodes for surge and ESD protection applications, in compact chip package DO-214AB (SMC) size format. Portable communications, computing and video equipment manufacturers are challenging the semiconductor industry to develop increasingly higher power density circuit protection components.
- Working peak reverse voltage VRWM is 36V
- Maximum breakdown voltage VBR is 44.2V at 1mA
- Maximum reverse leakage current is 2µA
- Maximum clamping voltage is 58.1V
- Peak pulse current is 86.1A
- Maximum instantaneous forward voltage is 5V at IPP = 100A
- Peak forward surge current is 300A
- Steady state power dissipation at TL = 50°C is 6.5W
- Operating temperature range from -55°C to +150°C
Области применения
Безопасность, Переносные Устройства
Количество Выводов:
2вывод(-ов)
Линейка Продукции:
5.0SMDJ Series
Максимальное Фиксированное Напряжение:
58.1В
Рабочее Напряжение:
36В
Рассеиваемая Мощность:
6.5Вт
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Диода:
DO-214AB
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
