P70-2300045R (HARWIN)
Контакт, разъем, колышек, SMT, Подпружиненный Контакт, Точка, 2 А, 6.2 мм

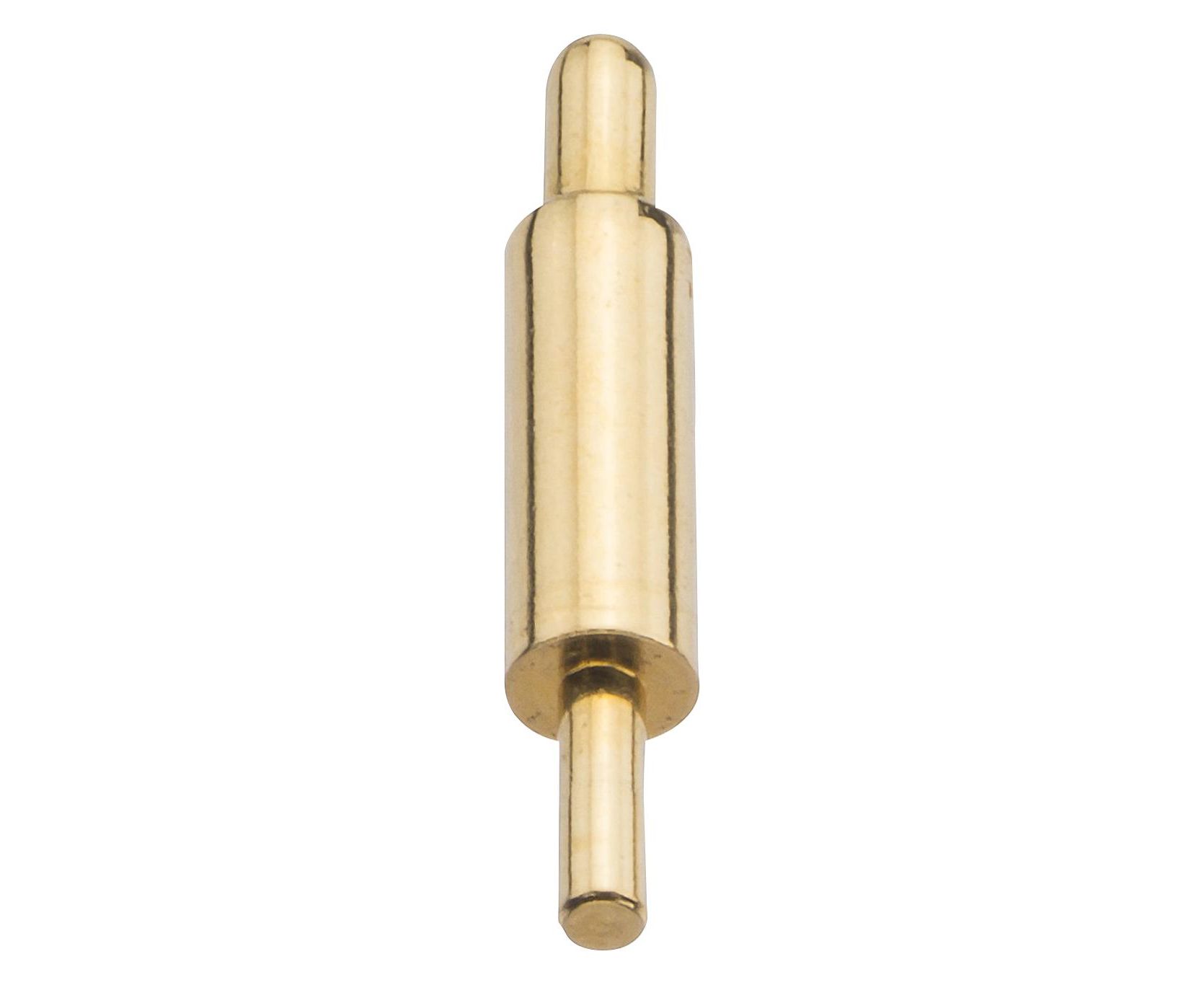

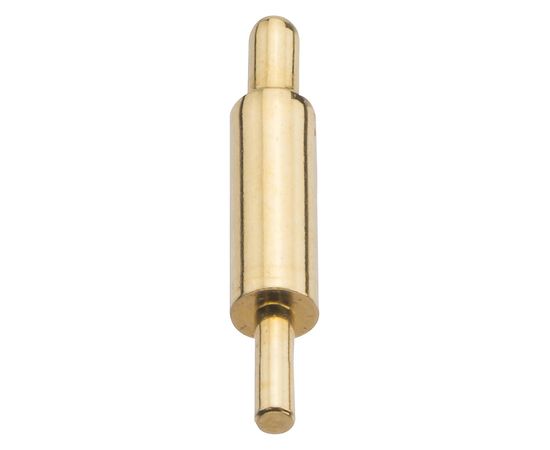

The P70-2300045R from Harwin is a surface mount single spring loaded contact with location peg or PC tail mounting. This PC tail pogo pin can be soldered as surface mount using the PC tail for location or lateral strength. This spring loaded contact mates with any contact surface or S70 series SMT contact pads. It has gold finish for improved wear resistance.
- 6.2mm free height
- Contact gender is female/spring contact
- Vertical connector orientation
- Spring force of 0.83N ±0.25N at 4.90mm working height
- Current rating of 2A
- Operating temperature range from -40°C to +85°C
- Maximum soldering temperature of 260°C for 10seconds
Линейка Продукции:
-
Начальная Сила Упругости Пружины:
-
Общая Длина:
6.2мм
Осевой Шаг:
-
Рабочий Ход Силы Упругости Пружины:
-
Соответствует Фталатам RoHS:
Будет Указано Позже
Стиль Кончика Соединителя:
Точка
Тип Соединителя:
Подпружиненный Контакт
Ток:
2А
SVHC (Особо Опасные Вещества):
Lead (27-Jun-2018)
RoHS статус:
Y-Ex
