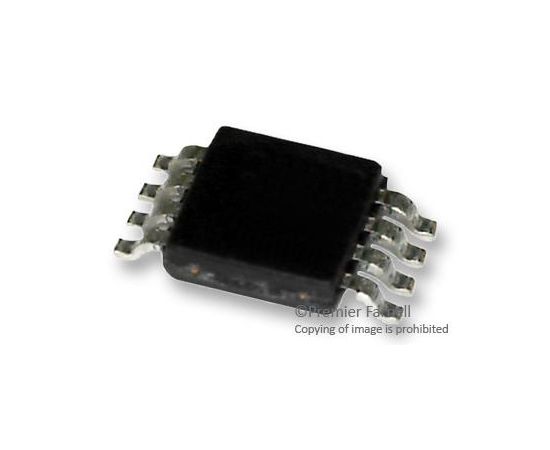

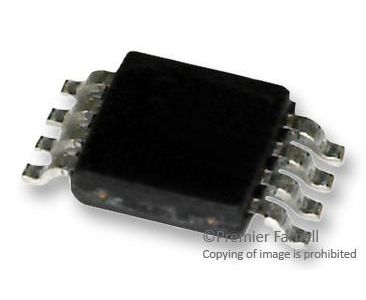

LM7322MM/NOPB (TEXAS INSTRUMENTS)

The LM7322MM/NOPB is a dual high output current Operational Amplifier with rail-to-rail input and output. The LM732xx family is efficient, achieving 18V/µs slew rate and 20MHz unity gain bandwidth while requiring only 1mA of supply current per op amp. The LM732xx device is designed to drive unlimited capacitive loads without oscillations. Greater than rail-to-rail input common-mode voltage range with 50dB of common-mode rejection across this wide voltage range, allows both high-side and low-side sensing. Most device parameters are insensitive to power supply voltage and this makes the parts easier to use where supply voltage may vary, such as automotive electrical systems and battery powered equipment. This amplifier has true rail-to-rail output and can supply a respectable amount of current (15mA) with minimal head- room from either rail (300mV) at low distortion (0.05% THD+noise).
