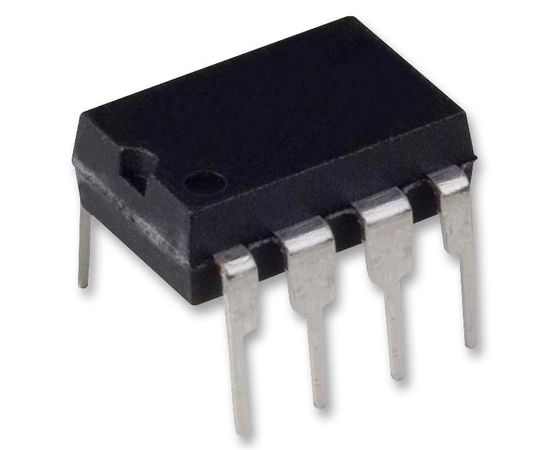

LF412CN/NOPB (TEXAS INSTRUMENTS)
Операционный усилитель, двойной, 2 Усилителя, 4 МГц, 15 В/мкс, 10В до 36В, DIP, 8 вывод(-ов)
The LF412CN/NOPB is a high-speed dual JFET input Operational Amplifier with very low input offset voltage and input offset voltage drift and require low supply current yet maintain a large gain bandwidth product and fast slew rate. In addition, well matched high voltage JFET input device provide very low input bias and offset currents. The LF412 dual is pin compatible with the LM1558, allowing designers to immediately upgrade the overall performance of existing designs. This amplifier is used in applications such as high speed integrators, fast D/A converters, sample and hold circuits and many other circuits requiring low input offset voltage and drift, low input bias current, high input impedance, high slew rate and wide bandwidth.
- 1mV Maximum internally trimmed offset voltage
- 7µV/°C Typical input offset voltage drift
- 50pA Low input bias current
- 0.01pA/vHz Low input noise current
- 10??R High input impedance
- Military rating
Области применения
Обработка Сигнала, Промышленное
Предупреждения
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
Диапазон Напряжения Питания:
10В до 36В
Количество Выводов:
8вывод(-ов)
Количество Усилителей:
2 Усилителя
Линейка Продукции:
-
Максимальная Рабочая Температура:
70°C
Минимальная Рабочая Температура:
0°C
Полоса Пропускания:
4МГц
Скорость Нарастания:
15В/мкс
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Усилителя:
DIP
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
