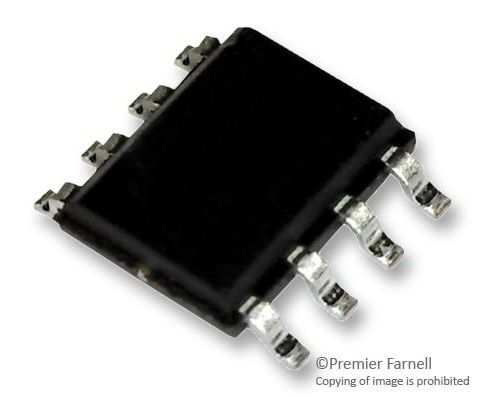

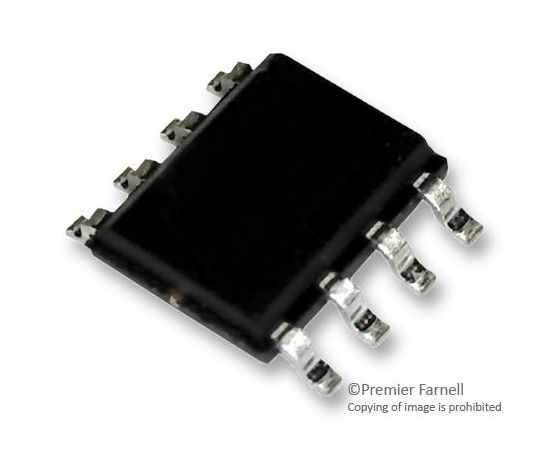

ADA4637-1ARZ (ANALOG DEVICES)

The ADA4637-1ARZ is a wide bandwidth precision single Operational Amplifier features low noise, very low offset, drift and bias current. The ADA4637-1 provides benefits previously found in few amplifiers. This amplifier combines the best specifications of precision DC and high speed AC op amps. The ADA4637-1 is a decompensated version of the ADA4627-1 and is stable at a noise gain of 5 or greater. With a typical offset voltage of only 70µV, drift of less than 1µV/°C and noise of only 0.86µVp-p (0.1 to 10Hz), the ADA4637-1 is suited for applications where error sources cannot be tolerated.
