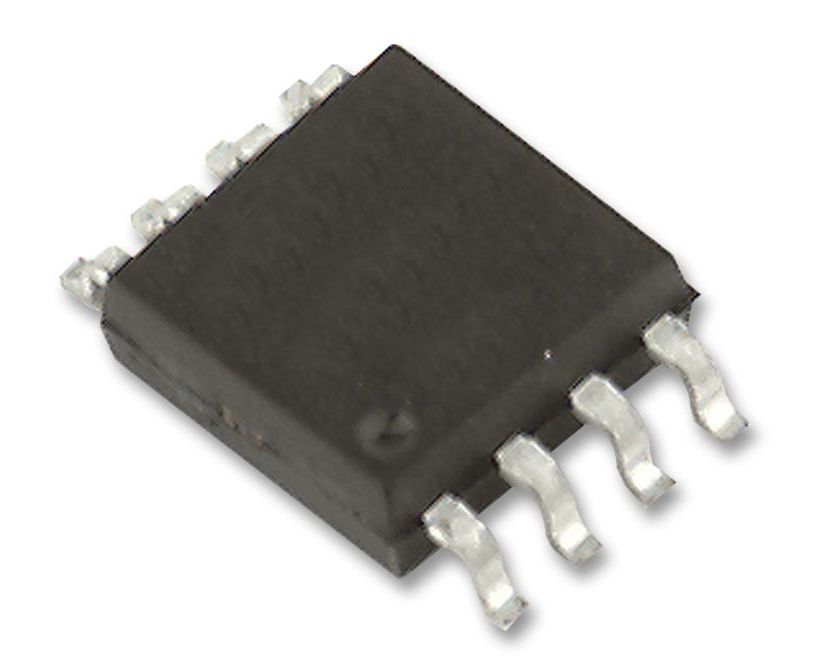

LTC6362CMS8#PBF (LINEAR TECHNOLOGY)
Дифференциальный усилитель, низкой мощности, 1 усилитель(-ей), 200 мкВ, 34 МГц, 0 °C, 70 °C
The LTC6362CMS8#PBF is a precision low power differential Operational Amplifier with rail-to-rail input and output swing that has been optimized to drive low power SAR ADCs. The LTC6362 draws only 1mA of supply current in active operation and features a shutdown mode in which the current consumption is reduced to 70µA. The amplifier may be configured to convert a single ended input signal to a differential output signal and is capable of being operated in an inverting or non-inverting configuration. Low offset voltage, low input bias current and a stable high impedance configuration make this amplifier suitable for use not only as an ADC driver but also earlier in the signal chain, to convert a precision sensor signal to a balanced (differential) signal for processing in noisy industrial environments.
- 1mA Supply current
- Single-supply
- Fully differential input and output
- 260nA Maximum input bias current
- Fast settling (550ns to 18-bit, 8VP-P output)
- Low distortion (-116dBc at 1kHz, 8VP-P)
- Rail-to-rail inputs and outputs
- 3.9nV/vHz Input-referred noise
- 180MHz Gain-bandwidth product
- Low power shutdown (70µA)
Области применения
Обработка Сигнала, Управление Питанием, Промышленное
Диапазон Напряжения Питания:
2.8В до 5.25В
Количество Выводов:
8вывод(-ов)
Количество Усилителей:
1усилитель(-ей)
Линейка Продукции:
-
Максимальная Рабочая Температура:
70°C
Максимальное Усиление дБ:
-
Минимальная Рабочая Температура:
0°C
Напряжение Входного Смещения:
200мкВ
Полоса Пропускания:
34МГц
Скорость Нарастания:
45В/мкс
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Усилителя:
MSOP
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
