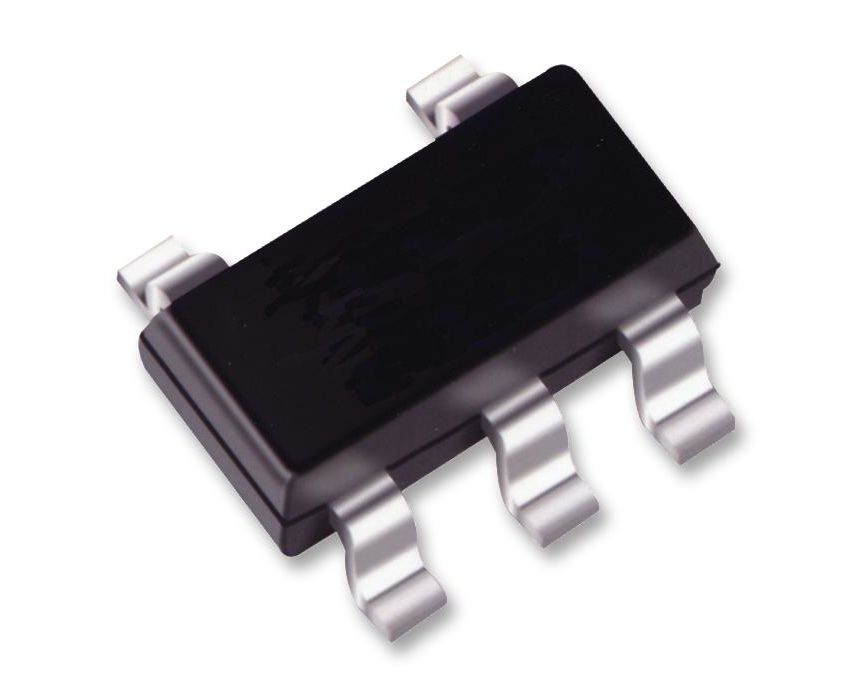

LTC6905CS5#TRMPBF (LINEAR TECHNOLOGY)

The LTC6905CS5#TRMPBF is a precision programmable Silicon Oscillator for use with ceramic oscillator replacement. It is easy to use and occupies very little board space. It requires only a single resistor to set the output frequency from 17 to 170MHz with a typical frequency error of 0.5% or less. The LTC6905 operates with a single 2.7 to 5.5V power supply and provides a rail-to-rail, 50% duty cycle square wave output. The CMOS output driver ensures fast rise/fall times and rail-to-rail switching. Operation is simple: A single resistor, RSET, between 10 to 25k is used to set the frequency and an internal three-state divider (DIV input) allows for division of the master clock by 1, 2 or 4, providing three frequencies for each RSET value. It features a proprietary feedback loop that linearizes the relationship between RSET and frequency, eliminating the need for tables to calculate frequency.
