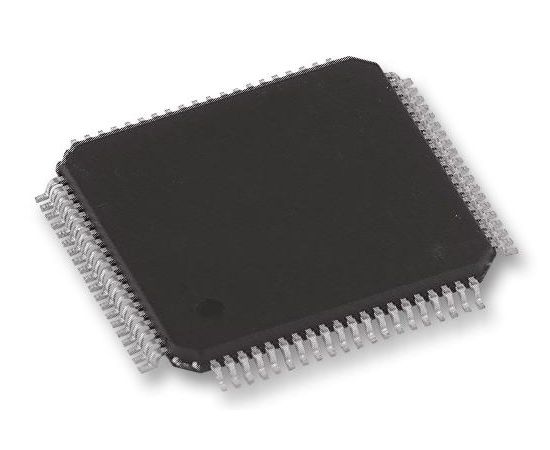

AD9852ASVZ (ANALOG DEVICES)
Цифровой генератор прямого синтеза, 300МГц, 12-битный ЦАП, 3.135В до 3.465В, HTQFP-80
The AD9852 series Digital Synthesizer which is highly integrated device that uses advanced DDS technology, coupled with an internal high speed, high performance digital-to-analog converter (DAC) to form a digitally programmable, agile synthesizer function. When referenced to an accurate clock source, the AD9852 generates a highly stable frequency-, phase- and amplitude-programmable cosine output that can be used as an agile LO in communications, radar and many other applications. The innovative high speed DDS core of the AD9852 provides 48-bit frequency resolution (1µHz tuning resolution with 300MHz SYSCLK). Maintaining 17bits ensures excellent SFDR.
- FSK, BPSK, PSK, chirp, AM operation
- Dual integrated 12-bit D/A converters
- Ultrahigh speed comparator, 3ps rms jitter
- Excellent dynamic performance 80dB SFDR at 100MHz (±1MHz) AOUT
- 4x to 20x Programmable reference clock multiplier
- Dual 48-bit programmable frequency registers
- Dual 14-bit programmable phase offset registers
- 12-bit Programmable amplitude modulation and on/off output shaped keying function
- Single-pin FSK and BPSK data interfaces
- PSK capability via I/O interface
- Linear or nonlinear FM chirp functions with single pin frequency hold function
- Frequency ramped FSK
- <25ps rms total jitter in clock generator mode
- Automatic bidirectional frequency sweeping
- Sin(x)/x correction
- Control interface 10MHz serial 2-wire or 3-wire SPI-compatible 100MHz parallel 8-bit programming
- Multiple power-down functions
- Single-ended or differential input reference clock
Области применения
Обработка Сигнала, Тестирование и Измерение, Коммерческое, Радиочастотная Связь, Время и Расчет Времени
Количество Выводов:
80вывод(-ов)
Линейка Продукции:
AD9852 Series
Максимальная Рабочая Температура:
85°C
Максимальное Напряжение Питания:
3.465В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
3.135В
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Тип Корпуса ИС:
HTQFP
Функция Микросхемы:
Цифровой Генератор Прямого Синтеза
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
RoHS статус:
Да
