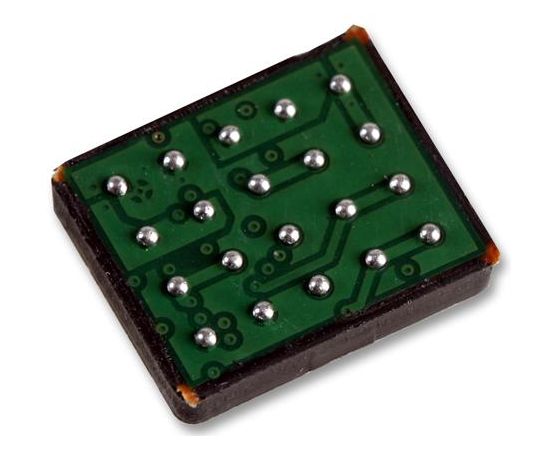

AD8233ACBZ-R7 (ANALOG DEVICES)

The AD8233ACBZ-R7 is a low noise, heart rate monitor for wearable products in 20 pin WLCSP package. It is an integrated signal conditioning block for ECG and other biopotential measurement applications. It is designed to extract, amplify and filter small biopotential signals in the presence of noisy conditions such as those created by motion or remote electrode placement. This design allows an ultralow power ADC or an embedded microcontroller to easily acquire the output signal. The AD8233 implements a two pole high pass filter for eliminating motion artifacts and the electrode half cell potential. An uncommitted operational amplifier enables device to create a three pole, low pass filter to remove additional noise. To improve the common mode rejection of line frequencies in system and other undesired interferences, the AD8233 includes an amplifier for driven lead applications (RLD).
