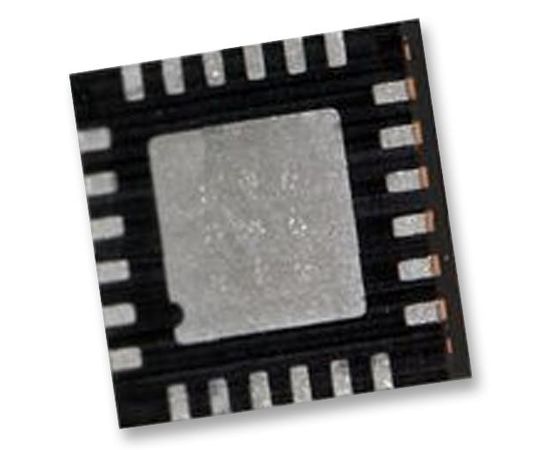

LTC6430AIUF-15#PBF (LINEAR TECHNOLOGY)
РЧ усилитель, 15.2дБ усиление, 20МГц до 2ГГЦ, 4.75В до 5.25В, 800мВт, QFN-24
The LTC6430AIUF-15#PBF is a high linearity differential RF/IF Amplifier/ADC Driver designed to drive high resolution, high speed ADCs with excellent linearity beyond 1000MHz and with low associated output noise. The LTC6430-15 operates from a single 5V power supply and consumes only 800mW. In its differential configuration, theLTC6430-15 can directly drive the differential inputs of an ADC. Using 1:2 baluns, the device makes an excellent 50R wideband balanced amplifier. While using 1:1.33 baluns, the device makes a high fidelity 50 to 1000MHz 75R CATV amplifier. The LTC6430-15 is designed for ease of use, requiring a minimum of support components. The device is internally matched to 100R differential source/load impedance. On chip bias and temperature compensation ensures consistent performance over environmental changes. The LTC6430-15 uses a high performance SiGe BiCMOS process for excellent repeatability compared with similar GaAs amplifiers.
- 50.0dBm OIP3 at 240MHz into a 100R diff load
- A-grade 100% OIP3 tested at 240MHz
- 1nV/vHz Total input noise
- S11 <-15dB Up to 1.2GHz
- S22 <-15dB Up to 1.2GHz
- >2.75Vp-p Linear output swing
- 24dBm P1dB
- Insensitive to VCC variation
- 100R Differential gain-block operation
- Input/output internally matched to 100R diff
- Unconditionally stable
Области применения
Обработка Сигнала, Радиочастотная Связь
Количество Выводов:
24вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальная Частота:
2ГГц
Максимальное Напряжение Питания:
5.25В
Минимальная Рабочая Температура:
-40°C
Минимальная Частота:
20МГц
Минимальное Напряжение Питания:
4.75В
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Радиочастотной Микросхемы:
QFN
Типичное Значение Коэффициента Шума:
3дБ
Усиление:
15.2дБ
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
