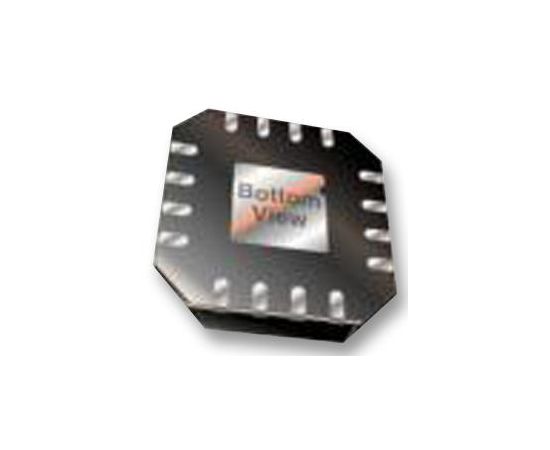

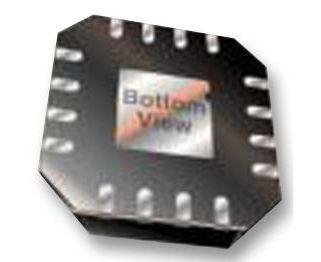

ADL5511ACPZ-R7 (ANALOG DEVICES)
Детектор РЧ, DC до 6ГГц, -28дБм до 17дБм входная мощность, 4.75В до 5.25В питание, LFCSP-16
The ADL5511ACPZ-R7 is a RF Envelope and TruPwr™ RMS Detector operating from DC to 6GHz. The envelope output voltage is presented as a voltage that is proportional to the envelope of the input signal. The RMS output voltage is independent of the peak-to-average ratio of the input signal. The RMS output is a linear-in-V/V voltage with a conversion gain of 1.9V/Vrms at 900MHz. The envelope output has a conversion gain of 1.46V/V at 900MHz and is referenced to an internal 1.1V reference voltage, which is available on the EREF pin. The ADL5511 can operate from DC to 6GHz on signals with envelope bandwidths up to 130MHz. The extracted envelope can be used for RF power amplifier (PA) linearization and efficiency enhancements and the RMS output can be used for RMS power measurement. The high RMS accuracy and fast envelope response are particularly useful for envelope detection and power measurement of broadband, high peak-to-average signals that are used in CDMA2000, W-CDMA and LTE syste
- Envelope tracking RF detector with output proportional to input voltage
- Separate TruPwr RMS output
- No balun or external tuning required
- Excellent temperature stability
- Input power dynamic range of 47dB
- Input frequency range from DC to 6GHz
- 130MHz envelope bandwidth
- 2ns Envelope delay
- 21.5mA Supply current
- 130µW Power-down mode
Области применения
Радиочастотная Связь, Связь и Сеть
Количество Выводов:
16вывод(-ов)
Линейка Продукции:
ADL5511 Series
Максимальная Входная Мощность:
17дБм
Максимальная Рабочая Температура:
85°C
Максимальная Частота:
6ГГц
Максимальное Напряжение Питания:
5.25В
Минимальная Входная Мощность:
-28дБм
Минимальная Рабочая Температура:
-40°C
Минимальная Частота:
-
Минимальное Напряжение Питания:
4.75В
Соответствует Фталатам RoHS:
Да
Стиль Корпуса Радиочастотной Микросхемы:
LFCSP
Чувствительность:
-
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
RoHS статус:
Да
