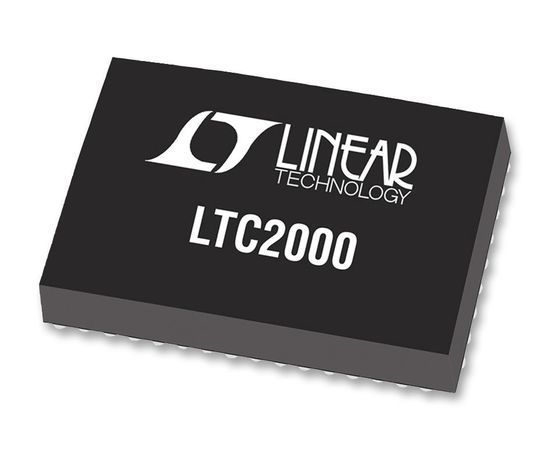

LTC2000AIY-16#PBF (LINEAR TECHNOLOGY)

The LTC2000AIY-16#PBF is a 16-bit current steering Digital-to-analog Converter (DAC) with exceptional spectral purity. The dual port source synchronous LVDS interface supports data rates of up to 1.35Gbps using a 675MHz DDR data clock, which can be either in quadrature or in phase with the data. An internal synchronizer automatically aligns the data with the DAC sample clock. Additional features such as pattern generation, LVDS loopout and junction temperature sensing simplify system development and testing. A serial peripheral interface (SPI) port allows configuration and read back of internal registers. Operating from 1.86 and 3.3V supplies, the LTC2000A consumes 2.41W at 2.7Gsps and 1.43W at 1.35Gsps.
