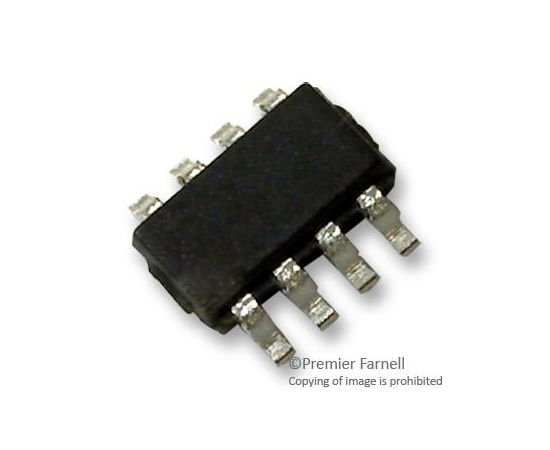

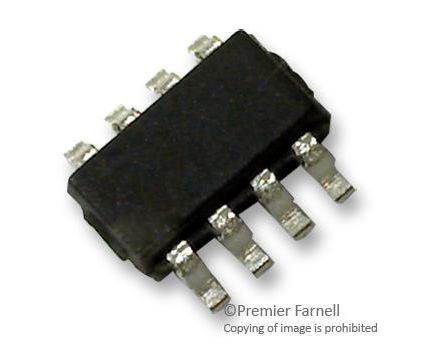

AD5061BRJZ-1500RL7 (ANALOG DEVICES)

The AD5061BRJZ-1500RL7 is a low power single 16-bit buffered voltage-out Digital-to-analog Converter (DAC) that operates from a single 2.7 to 5.5V supply. The part offers a relative accuracy specification of ±4LSB and operation is guaranteed monotonic with a ±1LSB DNL specification. The part uses a versatile 3-wire serial interface that operates at clock rates up to 30MHz and is compatible with standard SPI, QSPI™, MICROWIRE and DSP interface standards. The reference for the AD5061 is supplied from an external VREF pin. A reference buffer is also provided on-chip. The part incorporates a power-ON reset circuit that ensures the DAC output powers up to midscale or zero scale and remains there until a valid write takes place to the device. The part contains a power-down feature that reduces the current consumption of the device to typically 330nA at 5V and provides software-selectable output loads while in power-down mode. The part is put into power-down mode over the serial interfa
