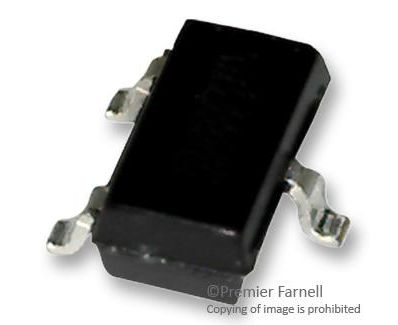

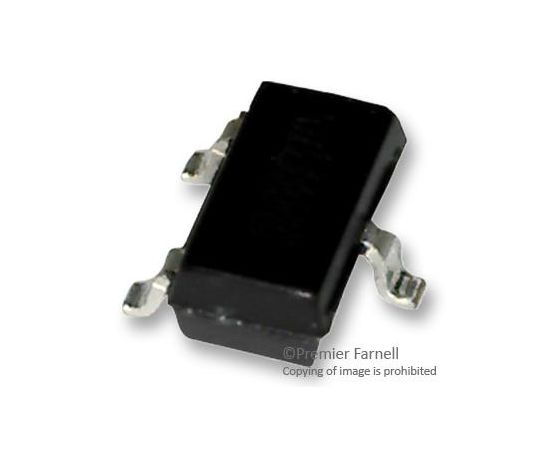

MXD1818UR29+T (MAXIM INTEGRATED PRODUCTS)
Схема контроля, ручной, активный низкий, 1.2В - 5.5В, 2.88В порог, 150мс задержка, SOT-23-3
The MXD1818UR29+T from Maxim Integrated Products is a low power µP reset circuit in 3 pin SOT-23 package. This circuit monitors power supply in µP and digital systems, it provides excellent circuit reliability, low cost by eliminating external components and adjustments when used with +2.5V, +3V and +3.3V systems. Circuit asserts a reset signal whenever VCC declines below preset threshold, keeping reset asserted for at least 100ms after VCC rises above reset threshold and also keep reset asserted for at least 100ms after output is momentarily pulled to GND by an external pushbutton switch. It has an open-drain active-low RESET output. This open-drain device has an internal pull-up resistor to VCC. It features a debounced manual-reset that asserts reset if active-low RESET pin is pulled low for more than 1.5µs. It is used in critical µP and µC monitoring, printers, set-top boxes, intelligent instruments, portable/battery powered equipments, computers and controllers.
- Supply voltage range is 1.2V to 5.5V at TA = -40°C to +105°C, power supply transient immunity
- Operating temperature range from -40°C to 105°C
- VCC to reset delay of 150ms at VCC rising, tR = 5µs
- Factory set reset threshold voltage of 2.88V, debounced manual reset detect
- IC provides a reset comparator designed to ignore fast transients on VCC
- ±2.5% reset threshold accuracy over temperature, no external components
- Fixed reset timeout period of 100ms (min), low power consumption (4µA)
- Fully assembled and tested board
- Maximum supply current is 16µA at VCC = +5.5V, VCC > VTH, no load
- 7.5Kohm internal pull-up resistor, open-drain
Области применения
Мониторинг Системы, Переносные Устройства, Потребительская Электроника
Время Задержки:
150мс
Количество Выводов:
3вывод(-ов)
Количество Устройств Мониторинга:
1монитор(-ов)
Корпус Цифровой ИС:
SOT-23
Линейка Продукции:
-
Максимальная Рабочая Температура:
105°C
Максимальное Напряжение Питания:
5.5В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
1.2В
Пороговое Напряжение:
2.88В
Соответствует Фталатам RoHS:
Будет Указано Позже
Стандарты Автомобильной Промышленности:
-
Тип Сброса:
Ручной, По Активному Низкому, Открытый Сток
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
