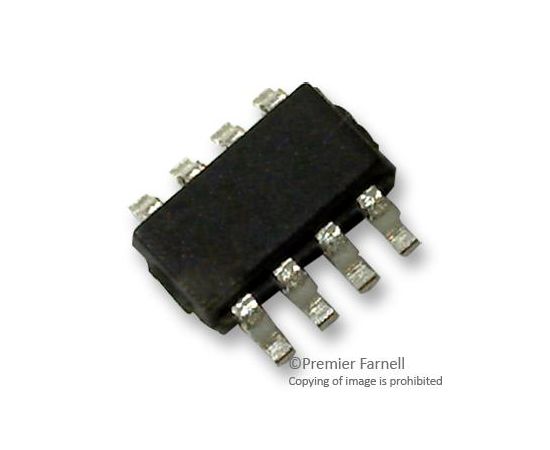

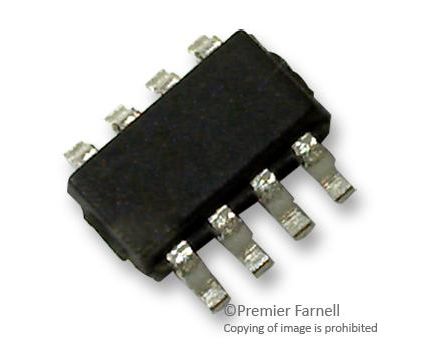

LTC2916CTS8-1#PBF (LINEAR TECHNOLOGY)

The LTC2916CTS8-1#PBF is a low-voltage single-supply Voltage Supervisor with 27 selectable thresholds. The parts operate from 1.5 to 5.5V and consume a quiescent current of only 30µA. Two three-state inputs select one of nine internally programmed thresholds without the need for external resistors. The tolerance for the LTC2916 is fixed at -5%. Threshold accuracy is guaranteed at ±1.5% over the entire operating temperature range. Glitch filtering ensures reliable reset operation without false triggering. The reset timeout may be set to 200ms or adjusted using an external capacitor. A separate manual reset input on the LTC2916 allows a simple push button interface.
