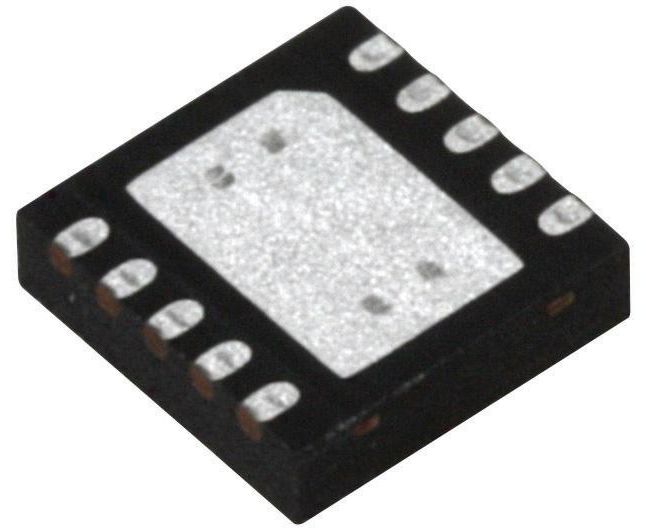

BQ24050DSQT (TEXAS INSTRUMENTS)

The BQ24050DSQT is a highly integrated Li-ion and Li-polymer Linear Charger targeted at space-limited portable applications. The device operates from either an USB port or AC adapter. The high-input voltage range with input overvoltage protection supports low-cost unregulated adapters. The BQ2405x has a single power output that charges the battery. A system load can be placed in parallel with the battery as long as the average system load does not keep the battery from charging fully during the 10-hour safety timer. The battery is charged in three phases: conditioning, constant current and constant voltage. In all charge phases, an internal control loop monitors the IC junction temperature and reduces the charge current if an internal temperature threshold is exceeded. The charger power stage and charge current sense functions are fully integrated. The charger function has high accuracy current and voltage regulation loops, charge status display and charge termination.
