ST1S10PUR (STMICROELECTRONICS)

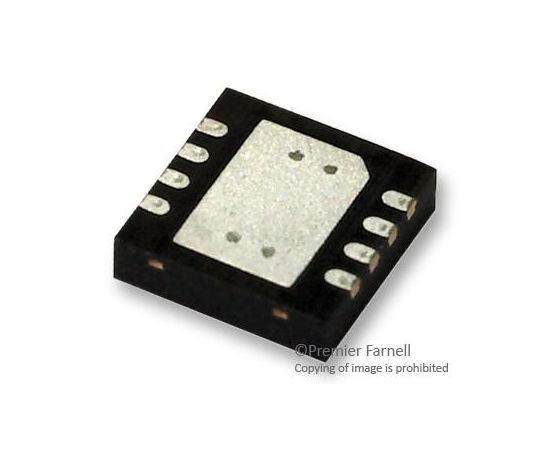

Импульсный понижающий DC-DC стабилизатор, регулируемый, 2.5В-18В (Vin), 800мВ-15.3В, 3А, DFN-8
The ST1S10PUR is a high-efficiency step-down PWM current-mode Switching Regulator capable of providing up to 3A of output current. The device operates with an input supply range from 2.5 to 18V. It operates either at a 900kHz fixed frequency or can be synchronized to an external clock (from 400kHz to 1.2MHz). The high switching frequency allows the use of tiny SMD external components, while the integrated synchronous rectifier eliminates the need for a Schottky diode. The ST1S10 provides excellent transient response and is fully protected against thermal overheating, switching overcurrent and output short-circuit.
- Step-down current mode PWM regulator
- Synchronous rectification
- Inhibit function
- Internal soft-start
- Dynamic short-circuit protection
- Maximum standby supply current of 6µA over temperature range
- 2% DC output voltage tolerance
- 90% Typical efficiency
Области применения
Потребительская Электроника, Связь и Сеть, Компьютеры и Периферия, Промышленное, Охрана
Предупреждения
Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Количество Выводов:
8вывод(-ов)
Количество Выходов:
1выход(-ов)
Корпус ИС DC / DC Преобразователя:
DFN
Линейка Продукции:
-
Максимальная Рабочая Температура:
125°C
Максимальное Входное Напряжение:
18В
Максимальное Выходное Напряжение:
15.3В
Минимальное Входное Напряжение:
2.5В
Минимальное Выходное Напряжение:
800мВ
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Тип упаковки:
Катушка
Топология (Общая Схема Соединений):
Синхронный Понижающий (Step Down)
Частота Коммутации:
1.2МГц
SVHC (Особо Опасные Вещества):
No SVHC (17-Dec-2015)
RoHS статус:
Да
Выходные параметры
Выходной Ток:
3А
