LM337IMP/NOPB (TEXAS INSTRUMENTS)
Линейный стабилизатор напряжения, регулируемый, -50В до -4.2В вход, -1.25В до -37В/1.5А выход
The LM337IMP/NOPB is a 3-terminal Adjustable Negative Voltage Regulator capable of supplying in excess of -1.5A over an output voltage range of -1.2 to -37V. These regulators are exceptionally easy to apply, requiring only 2 external resistors to set the output voltage and 1 output capacitor for frequency compensation. The circuit design has been optimized for excellent regulation and low thermal transients. Further, features internal current limiting, thermal shutdown and safe-area compensation, making them virtually blowout-proof against overloads.
- 0.01%/V Typical line regulation
- 0.3% Typical load regulation
- 0.002%/W Excellent thermal regulation
- 77dB Ripple rejection
- Excellent rejection of thermal transients
- 50ppm/°C Temperature coefficient
- Temperature-independent current limit
- Internal thermal overload protection
- P+ Product enhancement tested
- Standard 3-lead transistor package
- Output is short-circuit protected
- Green product and no Sb/Br
Области применения
Промышленное
Количество Выводов:
4вывод(-ов)
Линейка Продукции:
Adj 1A Linear Voltage Regulators
Максимальная Рабочая Температура:
125°C
Максимальное Входное Напряжение:
-4.2В
Максимальное Регулируемое Выходное Напряжение:
-37В
Минимальная Рабочая Температура:
-40°C
Минимальное Входное Напряжение:
-50В
Минимальное Регулируемое Выходное Напряжение:
-1.25В
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Линейного Стабилизатора:

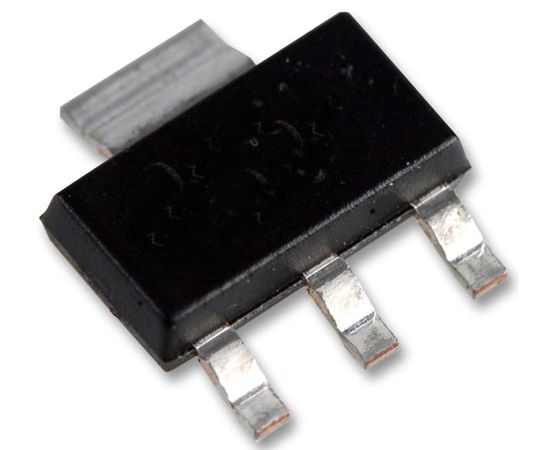

SOT-223
Тип Выхода:
Регулируемый
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
Выходные параметры
Выходной Ток:
1.5А
