LD1117DT33TR (STMICROELECTRONICS)
Фиксированный стабилизатор с малым падением напряжения, 4.75В-15В, 1.1В, 3.3В, 800мА
The LD1117DT33 is a Low-drop Voltage Regulator able to provide up to 800mA of output current, available even in adjustable version (VREF=1.25V). High efficiency is assured by NPN pass transistor. In fact in this case, unlike than PNP one, the quiescent current flows mostly into the load. Only a very common 10µF minimum capacitor is needed for stability. On chip trimming allows the regulator to reach a very tight output voltage tolerance, within ±1% at 25°C. The adjustable regulator is pin to pin compatible with the other standard. Adjustable voltage regulator maintaining the better performances in terms of drop and tolerance.
- Low dropout voltage (1V typical)
- 2.85V Device performances are suitable for SCSI-2 active termination
- 800mA Output current
- 3.3V Fixed output voltage
- Adjustable version availability (VREF=1.25V)
- Internal current and thermal limit
- 75dB (typical) Supply voltage rejection
Области применения
Управление Питанием, Управление Питанием
Предупреждения
Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Количество Выводов:
3вывод(-ов)
Линейка Продукции:
3.3V 950mA LDO Voltage Regulators
Максимальная Рабочая Температура:
125°C
Максимальное Входное Напряжение:
15В
Максимальное Регулируемое Выходное Напряжение:
-
Минимальная Рабочая Температура:
0°C
Минимальное Входное Напряжение:
5.3В
Минимальное Регулируемое Выходное Напряжение:
-
Падение Напряжения Vdo:
1.1В
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-

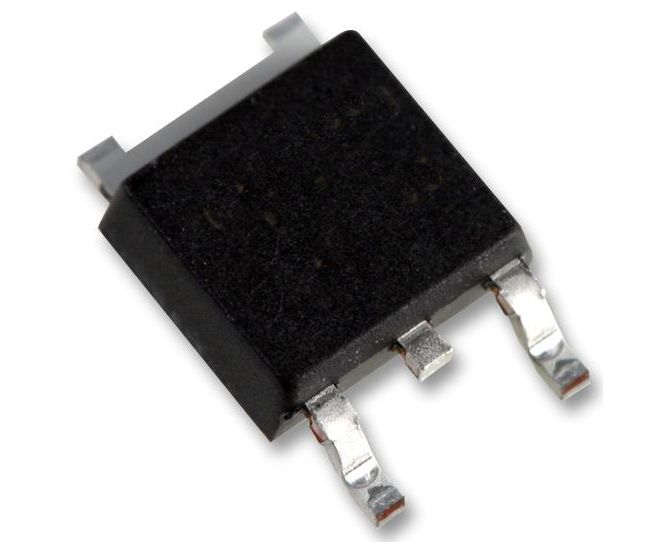

Стиль Корпуса Стабилизатора (LDO):
TO-252
Тип Выхода:
Фиксированный
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
No SVHC (17-Dec-2015)
RoHS статус:
Да
Выходные параметры
Выходной Ток:
950мА
