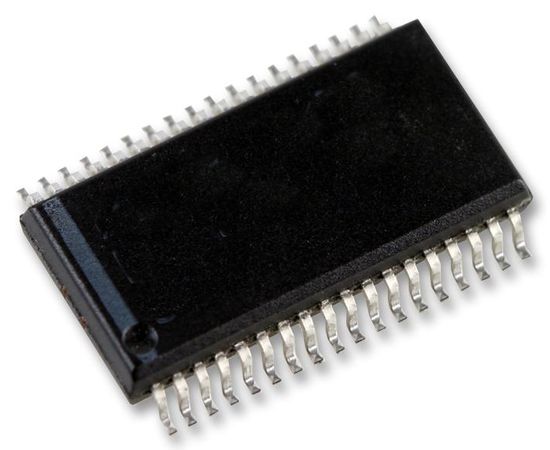

LTC4266CGW#PBF (LINEAR TECHNOLOGY)

The LTC4266CGW#PBF is a quad PSE Controller designed for use in IEEE 802.3 type 1 and type 2 (high power) compliant power over Ethernet systems. External power MOSFETs enhance system reliability and minimize channel resistance, cutting power dissipation and eliminating the need for heat-sinks even at type 2 power levels. External power components also allow use at very high power levels while remaining otherwise compatible with the IEEE standard. 80V-rated port pins provide robust protection against external faults. The LTC4266 includes advanced power management features, including current and voltage readback and programmable ICUT and ILIM thresholds. Available C libraries simplify power-management software development, an optional AUTO pin mode provides fully IEEE-compliant standalone operation with no software required. Proprietary 4-point PD detection circuitry minimizes false PD detection while supporting legacy phone operation.
