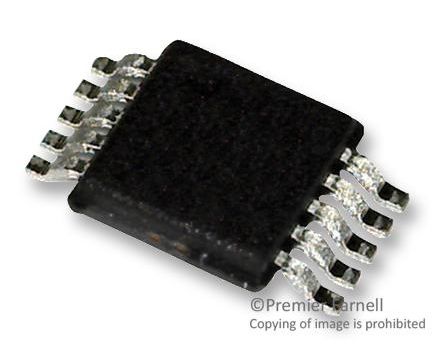

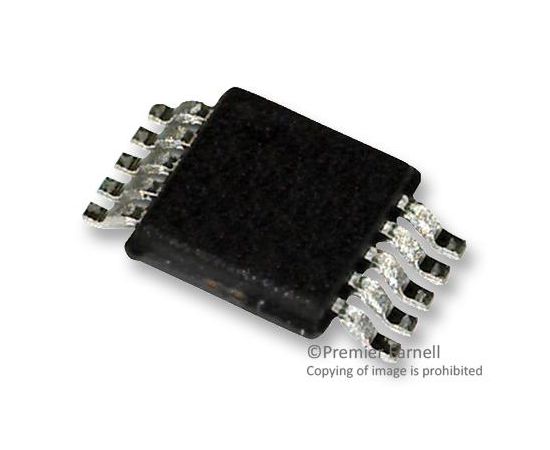

LM5069MM-2/NOPB (TEXAS INSTRUMENTS)
Контроллер горячей замены, 9В до 80В питание, 12В выход, MSOP-10
The LM5069MM-2/NOPB is a positive Hot Swap Controller provides intelligent control of the power supply connections during insertion and removal of circuit cards from a live system backplane or other hot power sources. The LM5069 provides in-rush current control to limit system voltage droop and transients. The current limit and power dissipation in the external series pass N-Channel MOSFET are programmable, ensuring operation within the safe operating area (SOA). The Power Good output indicates when the output voltage is within 1.25V of the input voltage. The input under-voltage and over-voltage lockout levels and hysteresis are programmable, as well as the initial insertion delay time and fault detection time. The LM5069-2 automatically restarts at a fixed duty cycle.
- In-rush current limit for safe board insertion into live power sources
- Programmable maximum power dissipation in the external pass device
- Adjustable current limit
- Circuit breaker function for severe over-current events
- Internal high side charge pump and gate driver for external N-channel MOSFET
- Adjustable under-voltage lockout (UVLO) and hysteresis
- Adjustable over-voltage lockout (OVLO) and hysteresis
- Initial insertion timer allows ringing and transients to subside after system connection
- Programmable fault timer avoids nuisance trips
- Active high open drain POWER GOOD output
- Available in latched fault and automatic restart
- Green product and no Sb/Br
Области применения
Управление Питанием, Промышленное
Входное Напряжение:
80В
Количество Выводов:
10вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
125°C
Максимальное Напряжение Питания:
80В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
9В
Применения Контроллера:
Системы Серверных Объединительных Плат, Автоматический Выключатель Твердого Состояния
Соответствует Фталатам RoHS:
Да
Стиль Корпуса ИС Контроллера:
MSOP
Тип упаковки:
Катушка
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
