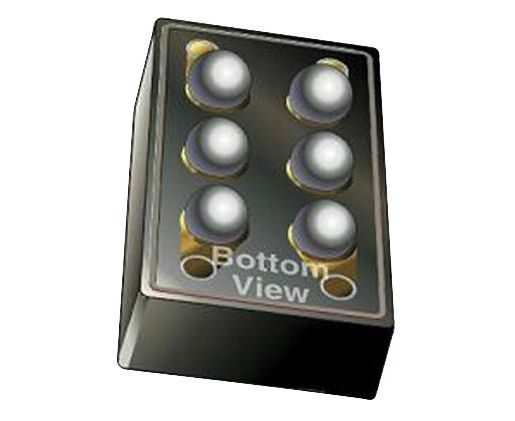

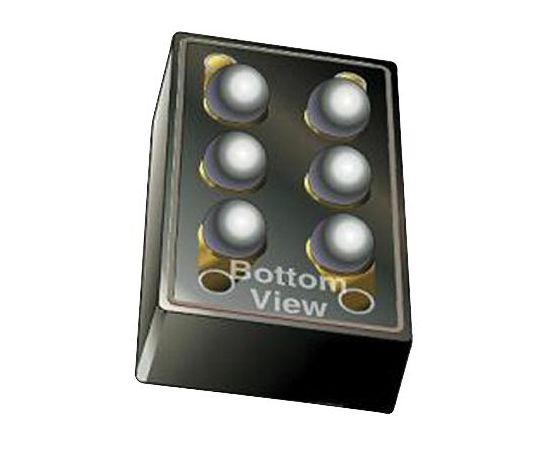

ADP197ACBZ-R7 (ANALOG DEVICES)
Переключатель силовой нагрузки, управление логикой, высокая сторона, активный высокий, 1 выход
The ADP197ACBZ-R7 is a high-side Load Switch designed for operation between 1.8 and 5.5V. This load switch provides power domain isolation, helping extended power domain isolation. The device contains a low on-resistance, N-channel MOSFET that supports more than 3A of continuous current and minimizes power loss. The low 18µA quiescent current and ultralow shutdown current make the ADP197 ideal for battery-operated portable equipment. The built-in level shifter for enable logic makes the ADP197 compatible with many processors and GPIO controllers. Overtemperature protection circuitry activates if the junction temperature exceeds 125°C, thereby protecting itself and downstream circuits from potential damage. In addition to operating performance, the ADP197 occupies minimal printed circuit board (PCB) space with an area of less than 1.5mm2 and a height of 0.60mm.
- 1.2V Logic compatible enable input
- <1µA Ultralow shutdown current
Области применения
Управление Питанием
ВКЛ. / Полярность Разрешающего Входа:
Активный Высокий Уровень
Входное Напряжение:
5.5В
Количество Выводов:
6вывод(-ов)
Количество Выходов:
1выход(-ов)
Линейка Продукции:
ADP197 Series
Максимальная Рабочая Температура:
85°C
Минимальная Рабочая Температура:
-40°C
Ограничение Тока:
3А
Соответствует Фталатам RoHS:
Да
Сопротивление Включенного Состояния:
0.012Ом
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Коммутатора-распределителя:
WLCSP
Тепловая Защита:
Да
Тип Переключателя Силовой Нагрузки:
Сторона Высокого Напряжения
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
RoHS статус:
Да
